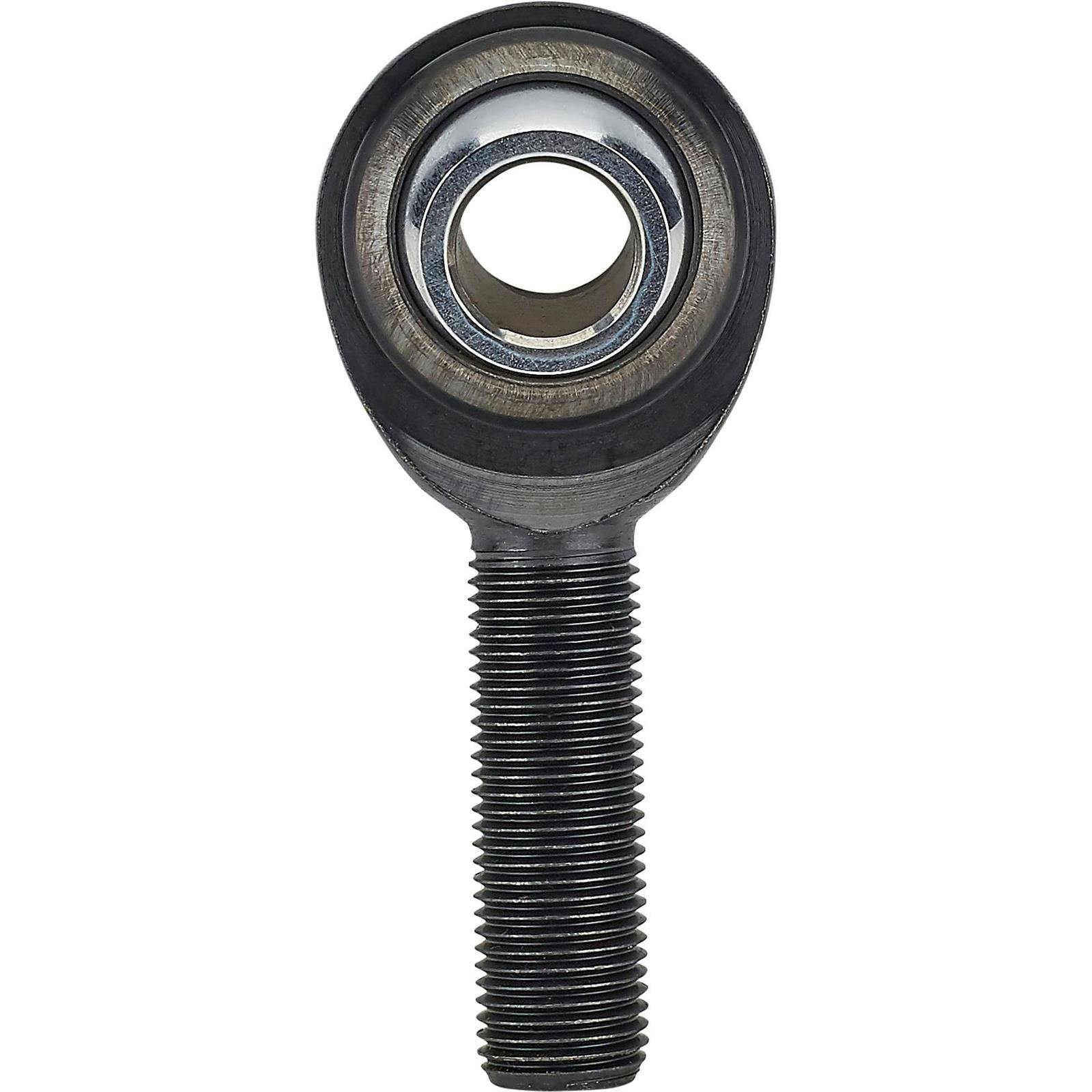

Pro-1 Chromoly Heim Joint Rod Ends, 1/2-20 RH Male
Pro-1 Chromoly Heim Joint Rod Ends, 1/2-20 RH Male
Speedway Motors

|

#1750505

Pro-1 Chromoly Heim Joint Rod Ends, 1/2-20 RH Male

  • This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
  • The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
  • Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
See More

Thread:

Right Hand

Left Hand

$11.49

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Chromoly, Black

  • This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
  • The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
  • Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
  • 1/2"-20 RH male rolled threads ensure strength and precision
  • 20 degrees of misalignment provides a wide range of motion without binding
See more details

Key Specs

Thread TypeRH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch1/2"-20
Material TypeChromoly
Hole Diameter0.5"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 1750505 Details

These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Charts

Speedway Motors 1750505 Specifications

KEY SPECS
MFG. Part #1750505
BrandSpeedway Motors
Thread TypeRH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch1/2"-20
Material TypeChromoly
Hole Diameter0.5"
Rod End StyleMetal-to-metal
Rod End Construction2-piece
Grease FittingNo
FinishBlack Oxide
ColorBlack
Bushing MaterialSteel
Jam Nut IncludedNo
GENERAL
Thread Length1.500"
Sold in QuantityEach

Ratings & Reviews

4.7

7 Reviews

Overall Assessment

Customers highlight the excellent quality and practicality of our product, noting its value for various applications such as bellytank suspension, Jeep trackbar, and building suspension arms. The durability is praised, with users often choosing our product over competitor equivalents due to superior material quality. Its usability is underscored by one customer who successfully replaced a broken heim joint on a Polaris Razor. Lastly, customers recognize its affordability and express a willingness to purchase more, thereby indicating overall satisfaction.

Write A Review

4.7

7 reviews

5

5

4

2

3

0

2

0

1

0

Filter by Ratings

Good stuff!

4.0

4 years ago

Trogdor

PDX

Verified

For use on a bellytank suspension. Still in fabrication, so haven't had them under load, which may remedy the slightly loose eyes.

Would Recommend

I don't expect to have to buy this product again

4.0

4 years ago

Richard

Tucson, AZ

Verified

Rebuilt my Jeep trackbar... Saved $200

Would Recommend

Heim joints

5.0

4 years ago

David G

Flagstaff. AZ

Verified

I haven't got them installed yet, im sure theyll work just fine.

Would Recommend

Quality as always

5.0

5 years ago

Trogdor

PDX

Verified

Building suspension arms. Haven't installed yet, but they feel solid.

Would Recommend

would buy again

5.0

6 years ago

Roy

Quinter, Ks

Verified

used this to replace heim joint on polaris razor that broke these are better quality

Would Recommend

great product

5.0

12 years ago

lokota44

Undisclosed

Verified

great product,great price,very fast shipping. I will be ordering more.

Would Recommend

Beautiful Heim

5.0

14 years ago

jimish

Reedley, CA

Verified

Using it for a hydraulic shock arm

Would Recommend

Showing 7 of 7 reviews

Questions & Answers

4 Questions • 6 Answers

What is the strength of this product in comparison to the precision carbon steel. I'm looking for more strength since the others failed.

by Dan

• 9 years ago

3 answers

View Answers

2 questions, what is the length of the bolt-hole in the ball? The distance from the same bolt hole to the furthest outside NON-threaded end?

by nick

• 10 years ago

1 answer

View Answer

how long is the heim from the center of the hole to the end of the threaded rod and the over all length for radius rods on a rear end

by triumphgt6

• 11 years ago

1 answer

View Answer

Hello , do u have the length of this product? Thanks

by

• 15 years ago

1 answer

View Answer

4 of 4 questions shown
