Powermaster Mastertorque Starters are rated up to 14:1 compression with a 3.25:1 gear reduction and up to 1.8HP, producing 180 Ft/Lbs of cranking torque. The Mastertorque Starters feature a durable black wrinkle finish. This starter features Powermaster's InfiCLOCK design with 360-degree rotation for ultimate adjustability. All Powermaster starters come with their dyno-tested proof of performance guarantee. Made in USA.

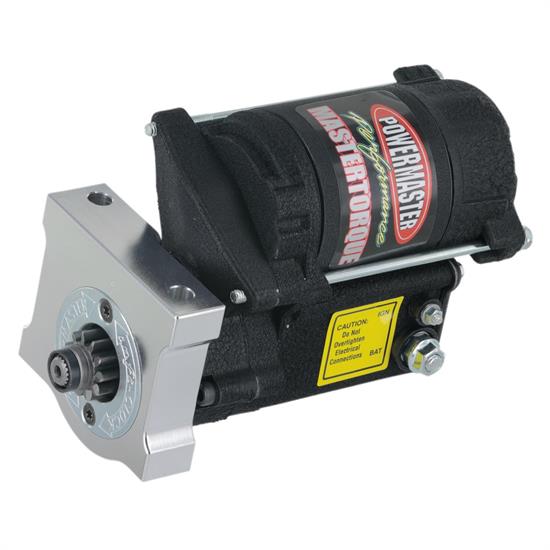

Powermaster 9609
Mastertorque starter
180 Ft/Lbs Torque
3.25:1 Gear Reduction
1.4 kW
1.8 HP
Black Wrinkle Finish
Fits: Chevy/Pontiac/GMC LS 168 Tooth

Guides & Documents

Installation Instructions (Powermaster)

Warranty (Powermaster)

Technical Information (Powermaster)

Warranty Information

Click for details

Do not send the unit back to Speedway Motors unless you have called Powermaster and talked to their Tech Department while the unit was still on the vehicle so they could help you troubleshoot the problem.

CA Prop 65

Powermaster 9609 Specifications

KEY SPECS
MFG. Part #	9609
Brand	Powermaster
Starter Size	Mini
Flywheel/Flexplate Tooth Count	168-tooth
Mount Type	Bolt-On
Finish	Black wrinkled

GENERAL
Starter Output (kW/hp)	1.4 kW / 1.8 hp
Starter Output (ft. lbs.)	180 ft.-lbs. torque
Gear Ratio	3.25:1
Compression Ratio	14.0:1
Torque	180 ft./lbs.
Sold in Quantity	Each
Notes	Made in the USA
GTIN Code	692209022688

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Does this include the mounting bolts?

by Jim

• 4 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1998-2002 Chevy Camaro

GM LS1

1997-2004 Chevy Corvette

GM LS1

1998-2002 Pontiac Firebird

GM LS1

2004 Pontiac GTO

GM LS1
