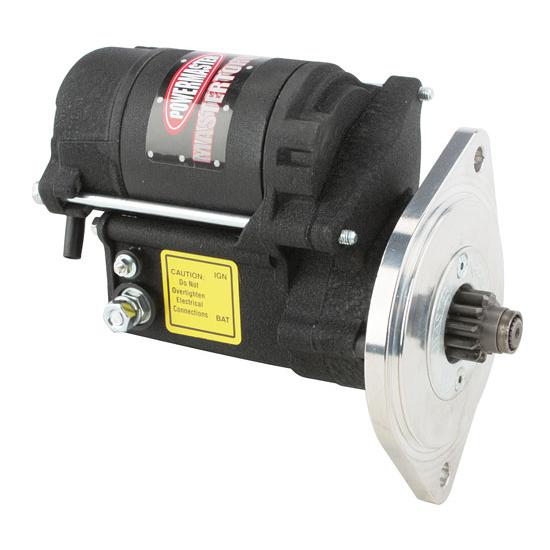

Powermaster 9603 Small Block Ford Gear Reduction Starter, A/T

-24%

Powermaster 9603 Small Block Ford Gear Reduction Starter, A/T
Powermaster

|

#91067462

Powermaster 9603 Small Block Ford Gear Reduction Starter, A/T

  • Starter registry diameter measures 4.08"
  • Doesn’t have any heat soak problems like OEM starter
  • 3.25:1 gear reduction ratio and power for up to 14:1 compression
See More

$226.99

/each

In Stock

$298.75

Save $71.76


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Automatic and Manual Transmission Type, Natural

  • Starter registry diameter measures 4.08"
  • Doesn’t have any heat soak problems like OEM starter
  • 3.25:1 gear reduction ratio and power for up to 14:1 compression
  • Clears oil pans if OE starter fits and features five position indexing
  • Fits the Small Block Ford 289-302-351 with an automatic transmission or 5-speed manual transmission
See more details

Key Specs

MFG. Part #9603
Starter SizeMini
Flywheel/Flexplate Tooth Count157-tooth/164-tooth
Mount TypeBolt-On
FinishNatural
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Powermaster 9603 Details

Powermaster's MasterTorque Series gear reduction starters have a 1.4 Kw motor that cranks out 180 ft.-lbs. of torque. Fits Small Block Ford 289-302-351 with an automatic transmission or 5-speed manual transmission. Also works well with Speedway Flathead-to-C4 Automatic Conversion (910-28906).

  • Five Position Indexing
  • No Heat Soak Problems
  • Clears Oil Pans if OE Starter Fits
  • Billet Aluminum Adapter Block
  • 3.25:1 Gear Reduction Ratio
  • Power for up to 14:1 Compression
  • Dyno Test Results Included
  • Weight: 10.5 lbs.
  • 4.08" Starter registry diameter



Charts

Warranty Information

Click for details

Do not send the unit back to Speedway Motors unless you have called Powermaster and talked to their Tech Department while the unit was still on the vehicle so they could help you troubleshoot the problem.

Do not send the unit back to Speedway Motors unless you have called Powermaster and talked to their Tech Department while the unit was still on the vehicle so they could help you troubleshoot the problem.

Powermaster 9603 Specifications

KEY SPECS
MFG. Part #9603
BrandPowermaster
Starter SizeMini
Flywheel/Flexplate Tooth Count157-tooth/164-tooth
Mount TypeBolt-On
FinishNatural
GENERAL
Transmission TypeAutomatic and Manual
Starter Output (kW/hp)1.4 kW / 1.8 hp
Starter Output (ft. lbs.)180 ft.-lbs. torque
Material TypeBillet Aluminum
ColorBlack
ClockableYes
Gear RotationStandard
Gear Ratio3.25:1
Compression Ratio14.0:1
Starter StyleFord 2-bolt
Weight10.5 lbs.
Overall Length7.13"
Overall Height5.25"
Centerline of Holes5.27"
Sold in QuantityEach
Notes3/4" depth application.
GTIN Code692209004271

Ratings & Reviews

5

8 Reviews

Overall Assessment

Customers highly regard the product for its exemplary performance, surpassing expectations. The mini starter's design and make drew praises for its practicality. Users found its adjustability particularly beneficial, noting it effortlessly cranked engines and accommodated various setups, demonstrating superior usability compared to similar products. Critical features such as fit and adaptability were confirmed by its utility in different engines, including a 351w swap on a Mustang. Overall, the product provides value for money, outshining competitors.

Write A Review

5

8 reviews

5

8

4

0

3

0

2

0

1

0

Filter by Ratings

I have this on each car now

5.0

7 months ago

Stang

Wisconsin

Verified

Works great

Would Recommend

Not powerful enough for 10 to 1 compression, as stated.

5.0

11 months ago

PastorFreddiek

Abilene, TX

Verified

I tried two of these when it began to drag under pressure, turning right off and back on again after it was warmed up. Made it a pain to get gas.

Would Not Recommend

Yes

5.0

a year ago

Q

SA TX

Verified

Working like it should not great having to buy a heat cover for it

Would Recommend

Yes I would buy again

5.0

2 years ago

Hot rod leader

Colorado

Verified

Working great

Would Recommend

Fantastic Starter

5.0

2 years ago

JD

New Whiteland, IN

Verified

Have a 347 Stroker in 66 Mustang and previous person that stroked engine left original Auto-Lite starter on engine. After doing some research I found I needed high-torque starter. Engine was always hard to start. After installing this starter it starts right up every time. No more having to pump the gas or worrying about it not starting. Thank you for offering great products.

Would Recommend

mini starter

5.0

5 years ago

whip

Silvis IL.

Verified

works better then expected

Would Recommend

well deigned and well made

5.0

5 years ago

turbo Ted

lawrence Kansas

Verified

its ability to be clocked was perfect for my application,and it cranked the engine effortlessly,worth the money.

Would Recommend

Fit great, fully adjustable.

5.0

7 years ago

Ryan

Omaha, NE

Verified

I used this on a 351w swap on my Mustang. It turns the motor over no problem and its fully adjustable to make it fit wherever you need it.

Would Recommend

Showing 8 of 8 reviews

Questions & Answers

1 Question • 3 Answers

Hello, just was wondering if this starter can be used to upgrade my 1989 302 Bronco with automatic transmission (AOD) Please let me know Thanks!

by JT

• 8 years ago

3 answers

View Answers

1 of 1 questions shown
