Add to Cart
$389.99
Powermaster 8-800 SB Chevy 50 Amp Mini Alternator Kit w/V-Belt
Powermaster 8-800 SB Chevy 50 Amp Mini Alternator Kit w/V-Belt

Powermaster 8-800 SB Chevy 50 Amp Mini Alternator Kit w/V-Belt

Universal Fit, One Wire Alternator, V-Belt Belt Type, Denso Alternator Case Style, Black

0 Reviews | 2 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Powermaster 8-800 SB Chevy 50 Amp Mini Alternator Kit w/V-Belt
Powermaster 8-800 SB Chevy 50 Amp Mini Alternator Kit w/V-Belt
Zoomed In Image
Part # 91068121
$389.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

One Wire Alternator:
Yes
Belt Type:
V-Belt
Alternator Case Style:
Denso
Alternator Amperage:
53 amp
Voltage Required:
12-Volt
Voltage Output:
14.7 Volts
Alternator Finish:
Powder Coated
Color:
Black
Alternator Material:
Steel
Alternator Pulley Included:
Yes
Belt Width:
0.375"
Alternator Brackets Included:
Yes
Base Width:
4.25"
MFG. Part #:
8-800
Sold in Quantity:
Kit
GTIN Code:
692209017196
Belt Included:
Yes
Pulley Style:
V-belt
Regulator Style:
Internal
Regulator Included:
Yes

Info

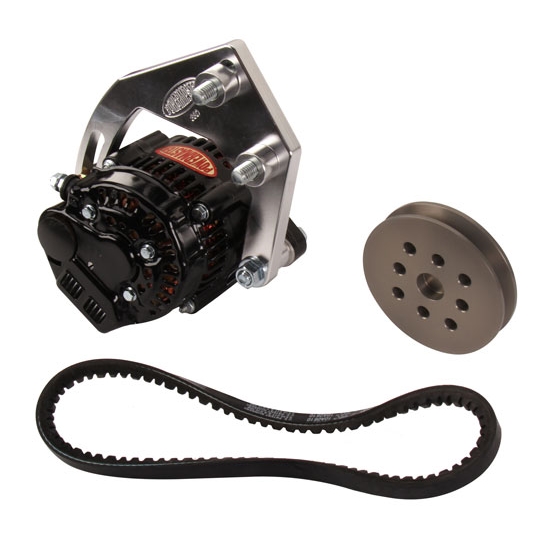

Powermaster provides all the electrical punch you need, while saving weight and space. One-wire unit for small block Chevys using short water pumps. Mounts on either side of engine. Cranks out 14.7 volts and 53 amps. Kit includes mini alternator, brackets, bolts, spacers, drive pulley and belt.

  • True 1-wire hookup with set voltage of 14.7
  • High output to weight ratio
  • Low drag, high speed bearings
  • Black heat dispersant coating



Small Block Chevy Mini Alternator Dimensions (Link)

Application

  • 30A @ 2,400 rpm @ 13.2 VDC @ 77°F
  • Operating Range:  -40°C to 150°C
  • Max RPM:  20,000
  • Weight:  5.80 lbs.
  • 5" deep from front to back
  • 4-1/4" wide on the back of the unit side to side
  • 5-1/4" on the centerline between the bolt mounting holes

Notes

  1. Included pulley mounts to the front of the water pump pulley, eliminating interference issues with existing pulley systems.
  2. Dyno Graph (Link)

Warranties

Powermaster's warranty is one year from the date of purchase on all street rod components, and 90 days for any component use for an off road or race application.

Powermaster will provide technical support regarding warranty claims and inquiries directly to the purchaser to help resolve any warranty claims or necessary technical support for warranty resolution. Component or components can be returned to Speedway Motors as long as the product is still under warranty.

All customer service inquiries pertaining to warranty and defect claims are to be handled by Speedway Motors if under one year street or 90 days race. If the product is out of warranty please contact Powermaster direct to discuss their repair and return program.

Some parts are not legal for use in California or other states with similar laws/regulations
