Polished Aluminum Oval Switch Plate Kit with LED Indicators
Universal Fit, Dash mount Switch Panel Style, Lighted, 3 Number of Switches
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.

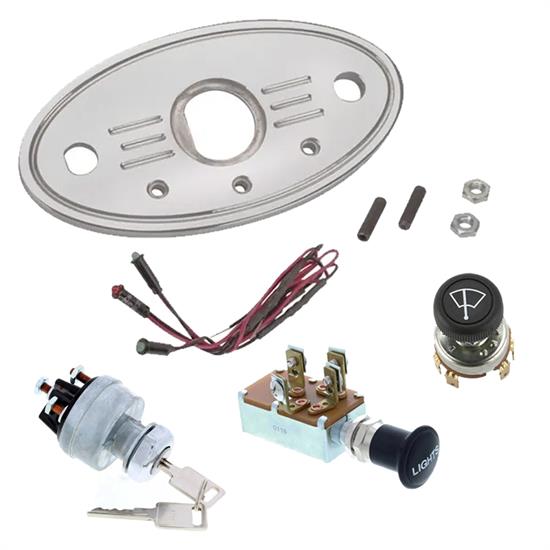

Clean up your dash by using this polished billet aluminum oval plate to mount ignition, wiper, and headlight switches. The panel in this kit also includes green LED turn indicators as well as a red LED indicator. This panel measures 2-1/2" tall and 5-1/4" long, LEDs are 1/8"
This gauge panel is designed to work with the included OEM GM-style dash mount ignition switch. The mounting hole on the left has a machined flat surface on one side to keep the wiper switch from turning in place. The mounting hole on the right of the panel is used for mounting the included push/pull type headlight switch.
- Ignition Switch
- Aftermarket universal ignition switch
- Three-function (On, Start, and ACC) switch
- Comes with two square head GM-style keys
- Integrated keyhole dust cover
- Wiper Switch
- Easy-to-use universal windshield wiper motor switch
- 3-position switch (OFF/PARK, LOW, and HIGH)
- For use with dual-motor wipers
- (6) blade style terminals
- Headlight Switch
- Universal 3-position headlight switch
- Off, Park, and Headlight/Taillight
- Screw type terminals
- Has a 15 amp per circuit rating at 12 volts.
When using this wiper switch with the universal stainless wiper motor # 911-23502, the switch will be wired from the 'S' terminal on the motor (or motors when using with 2 units) to the 'B' terminal on the switch. A ground wire will then be wired from the terminals on the switch numbered with '1', '2', '3', and '4' to a grounded location. The '5' terminal on the switch will (not) be utilized for this application. The wiper motor # 911-23502 will only operate at one constant speed when the switch is positioned to either of the 'on' positions and the wiper motor or motors will self-park and turn off when the switch is turned to the off position.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Aluminum Polished Oval Switch Plate & LED IndicatorsPart # 91030088Qty x 1
Universal 3-Way Ignition Switch with Keys, GM StylePart # 91140424Qty x 1
Universal Windshield Wiper Switch for Dual MotorsPart # 91064057Qty x 1
Speedway Universal Headlight SwitchPart # 91064051Qty x 1
