#447828290HT

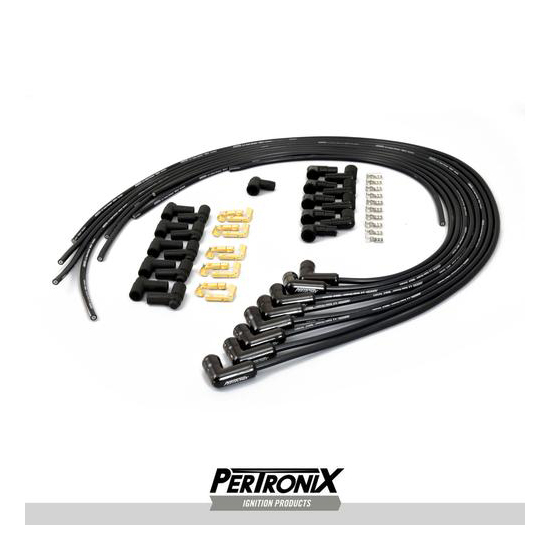

Pertronix 828290HT Flame Thrower Spark Plug Wires, Black, 90 Deg
by
PerTronix
$124.95
kit
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before February 16th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Spiral Core Conductor Style, Black
See more details
Key Specs
MFG. Part # | 828290HT |
Brand | PerTronix |
Diameter | 8 mm |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPerTronix 828290HT Details
PerTronix 828290HT Details
These are the answer to your burnt wire blues. Each wire is constructed from two layers of ultra-high temperature silicone and rated up to 600° F. The ceramic spark plug boot acts as the primary protection to direct heat withstanding up to 2000° F.
Two current paths for reliability and redundancy. -Primary path: Carbon impregnated fiberglass center core. -Secondary path: Spiral wound stainless steel alloy
- Low 500 ohm per foot resistance.
- 8mm Silicone jacket to resist high temperatures, moisture, oil, and chemicals.
- EPDM (Ethylene Propylene Diene Methylene) inner insulation for superior heat resistance and prevention of arcing and voltage leaks.
- Fiberglass reinforcing braid for added strength and flexibility.
- Universal 90°
- 8MM Black Wire
- Black Ceramic Boot
Charts
Instruction Manual (PDF)
Guides & Documents
PerTronix 828290HT Specifications
PerTronix 828290HT Specifications
KEY SPECS | |
---|---|
MFG. Part # | 828290HT |
Brand | PerTronix |
Diameter | 8 mm |
GENERAL | |
Conductor Style | Spiral Core |
Assembled | No |
Spark Plug Wire Color | Black |
Spark Plug Boot Ends | Eight 90 degree |
Spark Plug Boot Material | Ceramic |
Spark Plug Boot Color | Black |
RFI Suppression | Yes |
Distributor Terminal Ends | Male/HEI and Female/Socket |
Distributor Boot Material | Silicone |
Distributor Boot Color | Black |
Coil Wire Included | Yes |
Spark Plug Wire Resistance | 500 ohms/ft. |
GTIN Code | 694342555344 |
Sold in Quantity | Set |
