#582501F

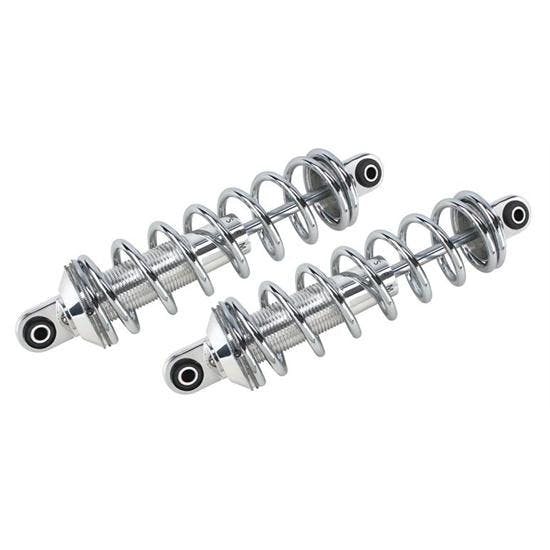

PRO Alum. Small Coilover Shock, 5 In. Pol, Spring Rate: 10 In.-450 lbs
- 5” stroke
- Kit has a suggested installed height of 13-1/4” to 13-1/2”
- Comp. Length - 10.5"
See More
$444.59
kit
On Backorder
$519.96
Save $75.37
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Front and Rear Position, Chrome
- 5” stroke
- Kit has a suggested installed height of 13-1/4” to 13-1/2”
- Comp. Length - 10.5"
- Ext. Length - 15.5"
- Spring Rate 10"-450 lbs, 1/2 Car Weight - 1900 lbs
Comes as a Kit
View Kit Components
See more details
Key Specs
Position | Front and Rear |
Spring Rate | 450 lbs. |
Mounted Length | 13.1" |
Shock Adjustability | Triple Adjustable |
Shock Body Material | Aluminum |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 582501F Details
Speedway Motors 582501F Details
Pro shocks new aluminum small body coil over shocks are 3 way adjustable. They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves. Because we’re pros in racing and performance, we understand the excellence you are looking for – as a pro – to win. PRO Shocks puts all that it has into making the product AND the service right for you. The advancement of shocks over the last decade makes choosing the right suspension product the difference between a successful season or not. We’re not here to just sell a shock to you. We’re here with the pros and the training to ensure that you get the right shock, and that you know what to do with it.
5” stroke kit has a suggested installed height of 13-1/4” to 13-1/2”
Item Details
Comp. Length - 10.5", Ext. Length - 15.5"
Spring Rate 10"-450 lbs, 1/2 Car Weight - 1900 lbs
Charts
Adjustment Instructions (GIF)
Speedway Motors 582501F Specifications
Speedway Motors 582501F Specifications
KEY SPECS | |
---|---|
MFG. Part # | 582501F |
Brand | Speedway Motors |
Position | Front and Rear |
Spring Rate | 450 lbs. |
Mounted Length | 13.1" |
Shock Adjustability | Triple Adjustable |
Shock Body Material | Aluminum |
Shock Stroke | 5.00 |
Upper Shock Mount | Bushed Eyelet |
Lower Shock Mount | Bushed Eyelet |
Finish | Chrome |
GENERAL | |
Shock Body Size | Small Body |
Compressed Length Range | 12.00" to 12.99" |
Compressed Length | 12.5" |
Extended Length Range | 17.00" to 17.99" |
Extended Length | 17.5" |
Number of Valving Selections | 3 |
Mounted Length Range | 12 1/2" - 13 1/4" |
Coilover Kit Included | Yes |
Coilover Springs Included | Yes |
Bushing Length | 1.50" |
Bushing Material | Polyurethane |
Upper Mount O.D. | 2.48" |
Lower Mount O.D. | 2.48" |
Inside Diameter | 2.63" |
Overall Diameter | 3.50" |
Wire Diameter | 0.4" |
Body Diameter | 1.62" |
Sold in Quantity | Kit |
Adjustable | Yes |
Spring Finish | chrome |
