#582501C
PRO Alum. Small Coilover Shock, 5 In. Pol, Spring Rate: 10 In.-185 lbs
- Pro shocks all new 3 way adjustable high-quality aluminum small body coil over shocks gives your ride a cleaner look and better performance
- These shocks measure 13.1" mounted, 12.5" compressed, and 17.5" extended with a 5.00" stroke
- Features a superior quality steel 10" real chrome spring with a 2-5/8" inside diameter and 175 lbs. spring rate
$619.99
/kit
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before April 10th.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Front and Rear Position, Chrome
- Pro shocks all new 3 way adjustable high-quality aluminum small body coil over shocks gives your ride a cleaner look and better performance
- These shocks measure 13.1" mounted, 12.5" compressed, and 17.5" extended with a 5.00" stroke
- Features a superior quality steel 10" real chrome spring with a 2-5/8" inside diameter and 175 lbs. spring rate
- The spring itself has an industry exclusive 360 degree polished wire construction that makes it look great from any angle
- Each shock also comes with durable urethane mounting bushings with both 1/2" and 5/8" mounting sleeves
Comes as a Kit
View Kit Components
Key Specs
| Position | Front and Rear |
| Spring Rate | 175 lbs. |
| Mounted Length | 13.1" |
| Shock Adjustability | Triple Adjustable |
| Shock Body Material | Aluminum |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 582501C Details
Speedway Motors 582501C Details
Pro shocks new aluminum small body coil over shocks are 3 way adjustable. They are fitted with 2-5/8" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your street rod. Each shock features urethane mounting bushings with both 1/2" and 5/8" mounting sleeves.
5” stroke kit has a suggested installed height of 13-1/4” to 13-1/2”
Item Details
Comp. Length - 10.5", Ext. Length - 15.5"
Spring Rate 10"-185 lbs, 1/2 Car Weight - 1250 lbs
Charts

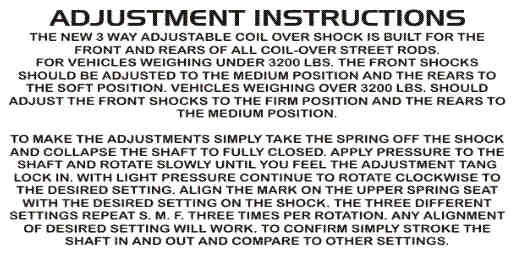

Adjustment Instructions (GIF)
Speedway Motors 582501C Specifications
Speedway Motors 582501C Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 582501C |
| Brand | Speedway Motors |
| Position | Front and Rear |
| Spring Rate | 175 lbs. |
| Mounted Length | 13.1" |
| Shock Adjustability | Triple Adjustable |
| Shock Body Material | Aluminum |
| Shock Stroke | 5.00 |
| Upper Shock Mount | Bushed Eyelet |
| Lower Shock Mount | Bushed Eyelet |
| Finish | Chrome |
| GENERAL | |
| Shock Body Size | Small Body |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.5" |
| Extended Length Range | 17.00" to 17.99" |
| Extended Length | 17.5" |
| Number of Valving Selections | 3 |
| Mounted Length Range | 12 1/2" - 13 1/4" |
| Coilover Kit Included | Yes |
| Coilover Springs Included | Yes |
| Thread Length | 5.75" |
| Bushing Length | 1.50" |
| Bushing Material | Polyurethane |
| Upper Mount O.D. | 2.48" |
| Lower Mount O.D. | 2.48" |
| Overall Diameter | 3.50" |
| Wire Diameter | 0.4" |
| Body Diameter | 1.62" |
| Sold in Quantity | Kit |
| Adjustable | Yes |
| Spring Finish | chrome |
| Notes | Includes two sets of bushings: one set with 1/2" ID and one set with 5/8" ID" |
