Product Summary

Universal Fit, 4-Barrel Carburetor Barrels

  • Specially designed for a dual quad intake manifold
  • Engineered to provide a smooth transition from carb to intake
  • Both carburetors will be spaced 15" apart center carb to center carb and 3" front to back center to center offset
  • The adapter measures 7-1/2" center of intake base flange to center of carb mount flange
  • It is 13.5" long and a total of 4" in height
See more details

Key Specs

MFG. Part #5497
BrandOffenhauser
Carburetor Flange Type4-Barrel Square Bore
Carburetor Barrels4-Barrel
Carburetor QuantityOne
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Offenhauser 5497 Details

These carburetor adapters from Offenhauser are designed to mount almost any carburetor onto almost any dual quad type manifold. These adapters are aluminum and will provide a smooth transition from carb to intake.

  • Designed for a dual quad intake manifold
  • 13.5" long
  • 4" high
  • Sold each

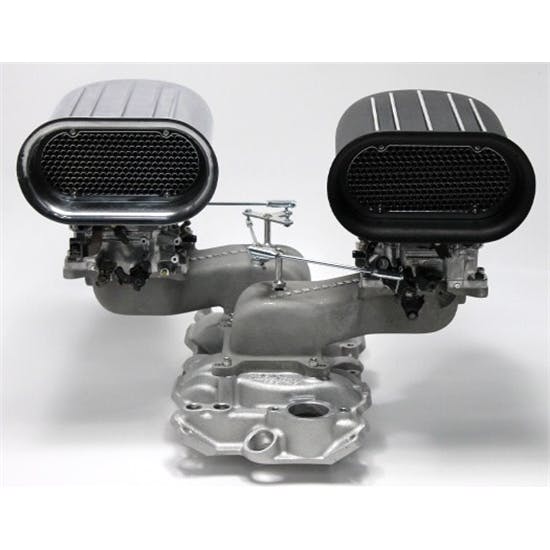

  • Works with # 560-5581 linkage kit available below and shown installed in additional photo above
  • Both carburetors will be spaced 15" apart center carb to center carb and 3" front to back center to center offset
  • Adapter is 7-1/2" center of intake base flange to center of carb mount flange
  • Linkage tower threads in adapter is female 1/8" npt thread

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Offenhauser 5497 Specifications

KEY SPECS
MFG. Part #5497
BrandOffenhauser
Carburetor Flange Type4-Barrel Square Bore
Carburetor Barrels4-Barrel
Carburetor QuantityOne
