Offenhauser 5497 Universal Cross Ram Adapter

#5605497

Offenhauser 5497 Universal Cross Ram Adapter

Name: Offenhauser 5497 Universal Cross Ram Adapter
Brand: Offenhauser
SKU: 5605497
Price: 293.99 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

1 Review

8 Questions

Specially designed for a dual quad intake manifold
Engineered to provide a smooth transition from carb to intake
Both carburetors will be spaced 15" apart center carb to center carb and 3" front to back center to center offset

$293.99

/each

In Stock

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels

Specially designed for a dual quad intake manifold
Engineered to provide a smooth transition from carb to intake
Both carburetors will be spaced 15" apart center carb to center carb and 3" front to back center to center offset
The adapter measures 7-1/2" center of intake base flange to center of carb mount flange
It is 13.5" long and a total of 4" in height

See more details

Key Specs

MFG. Part #	5497
Brand	Offenhauser
Carburetor Flange Type	4-Barrel Square Bore
Carburetor Barrels	4-Barrel
Carburetor Quantity	One

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

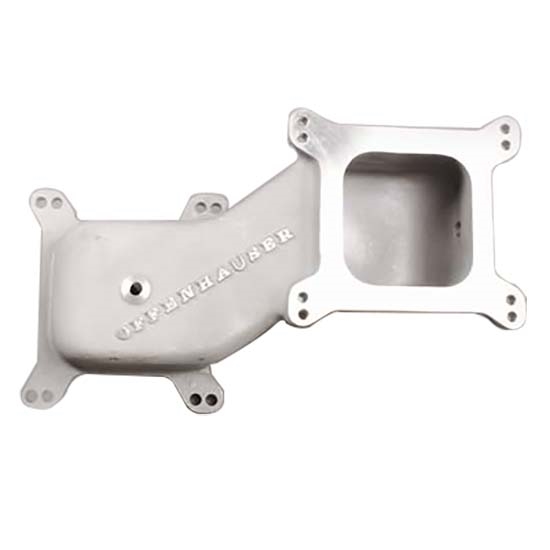

Offenhauser 5497 Details

These carburetor adapters from Offenhauser are designed to mount almost any carburetor onto almost any dual quad type manifold. These adapters are aluminum and will provide a smooth transition from carb to intake.

Designed for a dual quad intake manifold
13.5" long
4" high
Sold each
Works with # 560-5581 linkage kit available below and shown installed in additional photo above
Both carburetors will be spaced 15" apart center carb to center carb and 3" front to back center to center offset
Adapter is 7-1/2" center of intake base flange to center of carb mount flange
Linkage tower threads in adapter is female 1/8" npt thread

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CARB warning

Offenhauser 5497 Specifications

KEY SPECS
MFG. Part #	5497
Brand	Offenhauser
Carburetor Flange Type	4-Barrel Square Bore
Carburetor Barrels	4-Barrel
Carburetor Quantity	One

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

yesits a excellent product

5.0

7 years ago

1966rambleramerican

canada campbellford ontario

Verified

put on 440 dodge challenger with nose pushing now 880 hp

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

8 Questions • 12 Answers

Sort Questions

Will this allow the use of a standard HEI distributor

by Gtolvr455

• 6 years ago

1 answer

View Answer

Will the 5497offenhauser cross ram adapter fit a offenhauser 4 barrel intake that goes on a slant six engine. It has a holley 4160 4barrel car. on it now

by Ricky

• 7 years ago

2 answers

View Answers

will this dual cross ram adapters work ok on a bds blower .

by joker

• 8 years ago

2 answers

View Answers

What is the tap/thread size on the PCV port, please? Thanks

by YBracer

• 8 years ago

1 answer

View Answer

Is the linkage system shown being used also available as a kit?

by Dano

• 8 years ago

2 answers

View Answers

Can you put this on a tunnel ram intake

by Ty

• 9 years ago

1 answer

View Answer

Will Chevy HEI style distributor work with this setup? Going onto 79 Chevy small block.

by Robert

• 9 years ago

2 answers

View Answers

Does this fit either ford or chevy intakes? I have a sbf that I am wanting this for.

by James

• 9 years ago

1 answer

View Answer

8 of 8 questions shown
