Product Summary

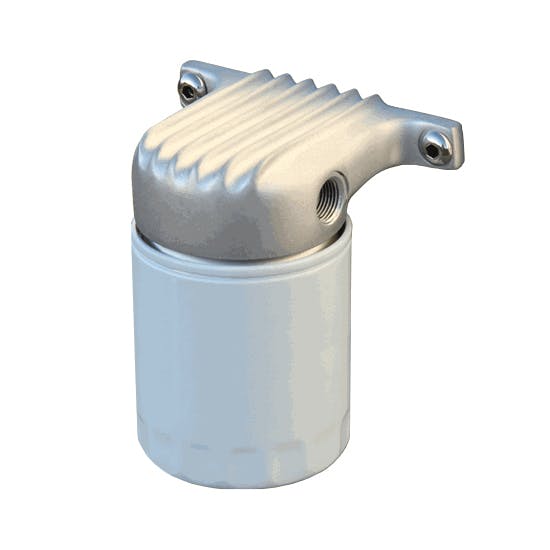

Universal Fit, Aluminum, 3/8"-18 NPT Outlet Fitting

    Key Specs

    MFG. Part #6547
    BrandOTB Gear

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    A good looking, high quality solution for your oil filter mounting needs. truly compact in size, perfect for those tight spaces. Cast of aircraft grade A-356 aluminum and embellished with our graceful fins. We furnish a U.S. made filter - replacements available in your local market. Mounting hardware and oil line fittings are not included. Made in USA.

    • Drilled for 5/16" mounting bolts - holes are 4-3/16" center to center
    • The unpolished version is bead blasted for a smooth, uniform finish
    • Drilled and tapped for 3/8" oil line fittings
    • Oil flow is from right to left when facing the product
    • Max. width 5-1/4"
    • Projection from mounting surface 3-3/4"
      • Height with filter 5-1/2"Filter Details:
        Compact design
      • Full flow
      • Anti-drain back valve
      • Internal by-pass valve @16PSI
      • Max flow rate 7-9 GPM
      • Micron rating 21
      • Burst pressure 360 PSI

    Specifications

    KEY SPECS
    MFG. Part #6547
    BrandOTB Gear
    GENERAL
    Material TypeAluminum
    Inlet Fitting3/8"-18 NPT
    Outlet Fitting3/8"-18 NPT
    Sold in QuantityEach
    FinishNatural
    Notes3/4-16 THREAD,(GM) FILTER PROVIDED. NAPA 1391 91015175 AC PF1233
    Overall Height5.5"
    Overall Width5.25"
