Part # 5509710

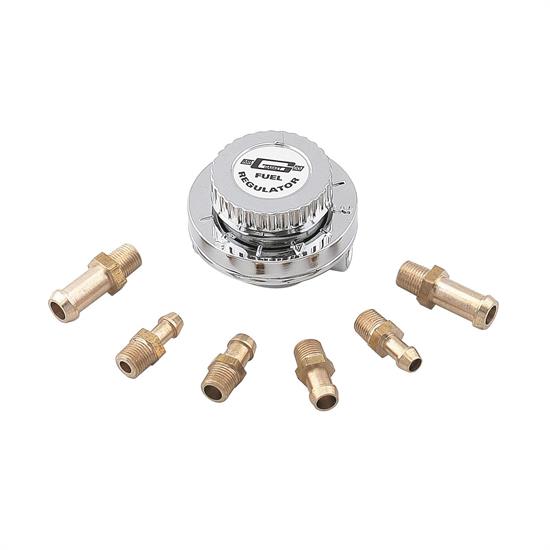

Mr Gasket 9710 Adjustable Fuel Pressure Regulator, 1-6 PSI
by
Mr Gasket- The chrome plated body has a 2.25" diameter
- Will fit 1/4", 5/16", or 3/8" fuel hoses
- Fuel pressure regulator adjusts from 1 to 6 psi
See More
$44.08
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1-6 Fuel Pressure Rating (psi)
- The chrome plated body has a 2.25" diameter
- Will fit 1/4", 5/16", or 3/8" fuel hoses
- Fuel pressure regulator adjusts from 1 to 6 psi
- Engineered to be used with carburetor fuel systems & engines not exceeding 400 HP
- Simply select desired pressure settings via selector knob located on top of regulator
See more details
Key Specs
| MFG. Part # | 9710 |
| Brand | Mr Gasket |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Adjustable from 1-6 psi, Includes barbed fittings for use with 1/4", 5/16", or 3/8" fuel hose. For use with carburetor fuel systems only & engines not exceeding 400 HP. Select desired pressure settings via selector knob located on top of regulator. 2.25" Diameter chrome plated body.
Adjustable fuel pressure regulator, Adjusts from 1 to 6 psi. Includes barbed fittings. Chrome plated body. For use with carburetor fuel systems only.
- Easily Select Pressure Settings
- Easy - Quick Installation
- Fits 1/4", 5/16", or 3/8" Fuel Hoses
- Adjustable Pressure from 1 to 6 psi
- Chrome Plated
Charts
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9710 |
| Brand | Mr Gasket |
| GENERAL | |
| Fuel Pressure Rating (psi) | 1-6 |
| Regulator Style | Non-return |
| Sold in Quantity | Each |
| Boost/Vacuum Reference Port | No |
| Gauge Port | No |
| Fittings Included | Yes |
| Rebuildable | No |
| Inlet Quantity | One |
| Inlet Attachment | Female Threads |
| Inlet Size | 1/8 in. NPT |
| Outlet Quantity | One |
| Outlet Attachment | Female Threads |
| Outlet Size | 1/8 in. NPT |
| Regulator Location | Inline |
| GTIN Code | 084041097106 |
| Regulator Material | Steel |
| Regulator Finish | Chrome plated |
| Mounting Bracket Included | No |
