Moroso Oil Pan w/Plug -High Volume Oil Pump/Pickup Kit, 57-79 SBC

Save money and move more oil with these high volume Champ style oil pan/pump combos for 1957-79 (driver side dipstick) SBC engines.

Kit Includes:

• (1) Moroso 21322 Champ Style Oil Pan
• (1) High Volume Oil Pump
• (1) Moroso 24316 Oil Pump Pick Up
• (1) Oil Pan Gasket Set
• (1) Oil Pump Drive Shaft
• (1) Oil Pump Stud Kit

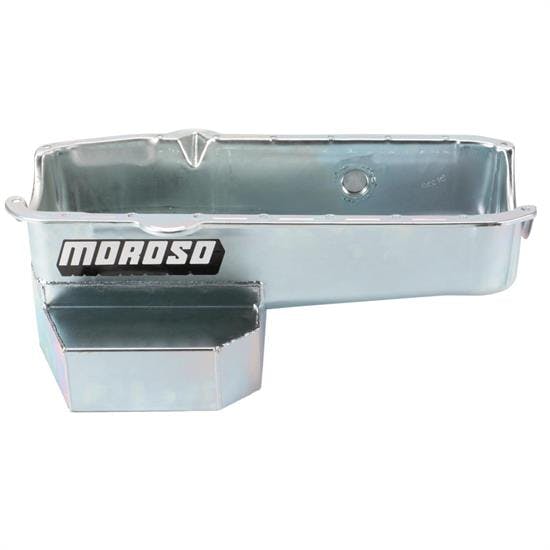

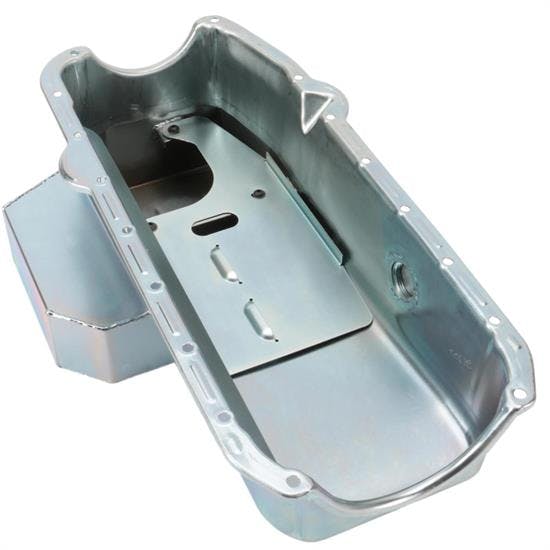

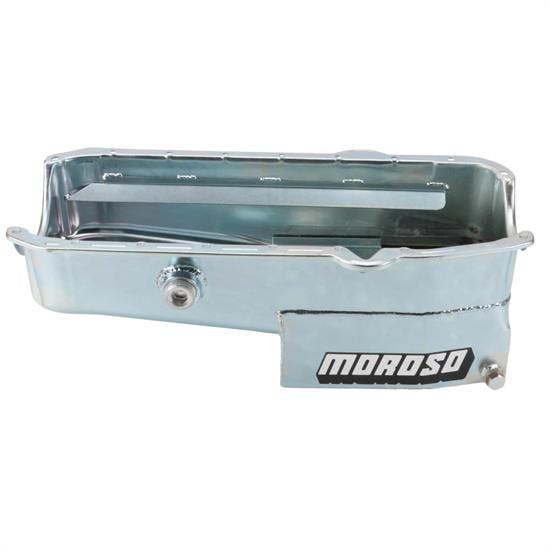

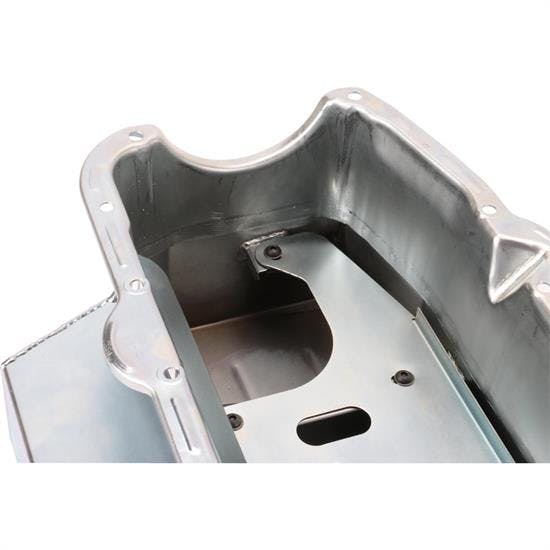

Moroso 21322 Champ Style Oil Pan

• Trap doors for oil control
• Removable windage tray
• Built-in crank scraper
• Accepts up to 3.800" stroke with steel rods
• 7-1/2" deep, 11" wide
• Fits 78-87 Metric chassis and Camaro stubs
• Fits small block Chevy
• Has 1" Inspection plug
• Has a 7 quart capacity

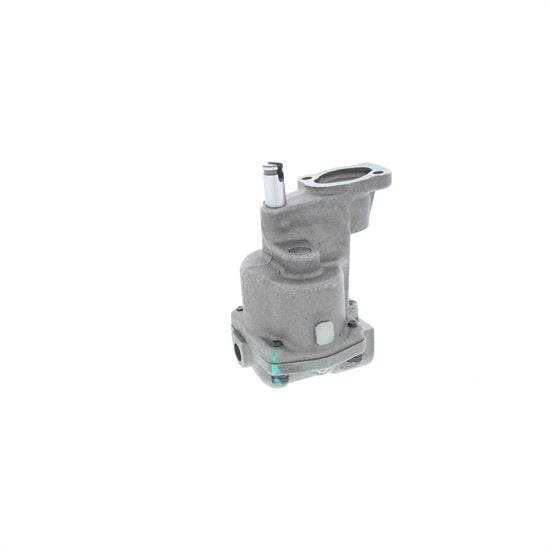

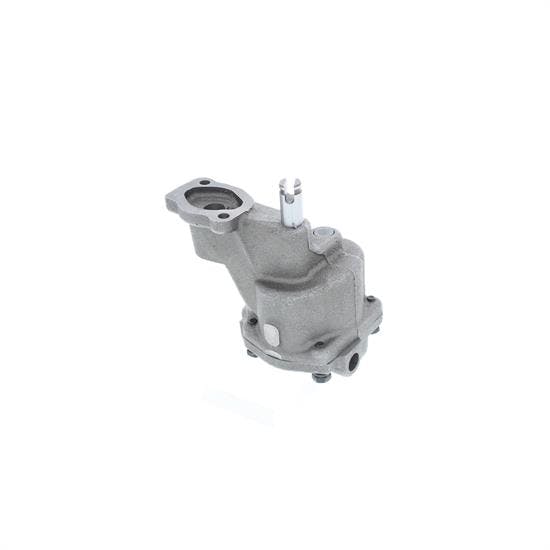

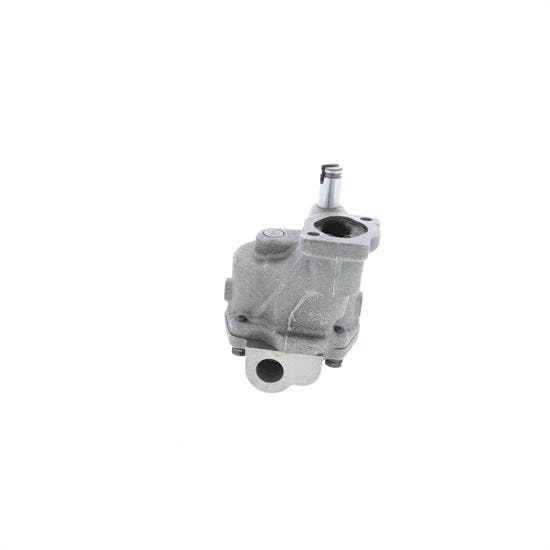

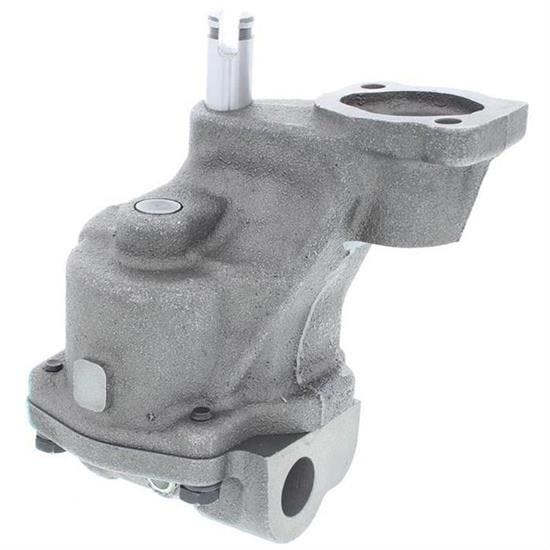

High Volume Oil Pump

• For 1955-1999 small block Chevy V8
• 25% more volume than stock oil pumps
• Ideal for high-mileage, basic rebuilds, and racing engines
• Recommended for applications with remote filters or coolers
• Upgraded 1.500" long gear (.300" longer than stock)
• Preset to 55-65 psi, but includes low-pressure spring included if needed
• Use with 5/8" pick-up tube

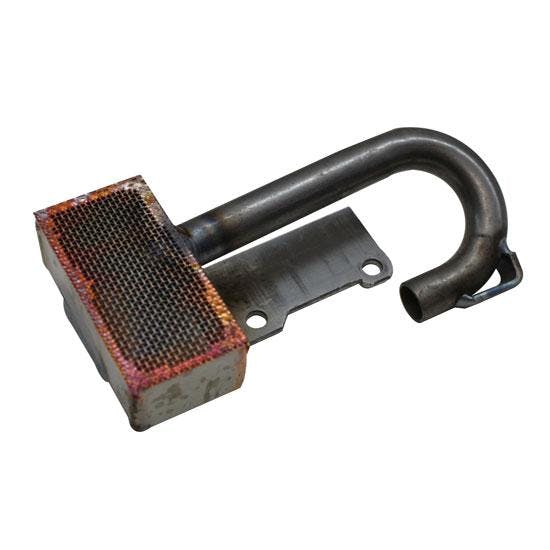

Moroso 24316 Oil Pump Pick Up

• Steel champ style oil pan pick-up
• For 4-bolt small block Chevy high volume oil pumps
• Has a 5/8" diameter tube
• 1.90" centerline of holes

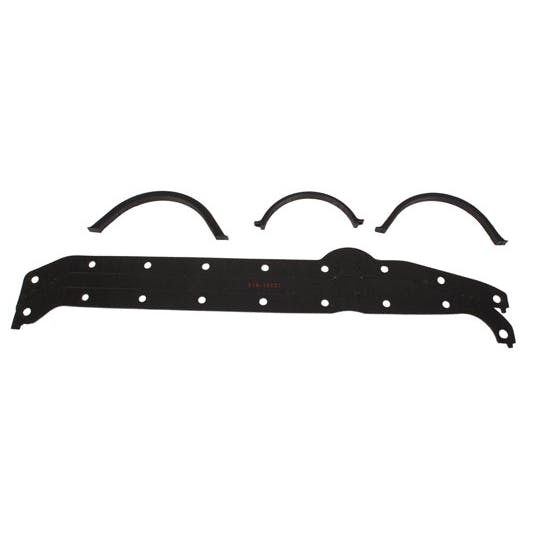

Oil Pan Gasket Set

• Left Hand side (57-79) or Right Hand side (80-85) dipstick
• For 2-piece rear main seal blocks
• Includes both 'Thick' and 'Thin' front pan seals
• .090" material thickness
• Cork material type

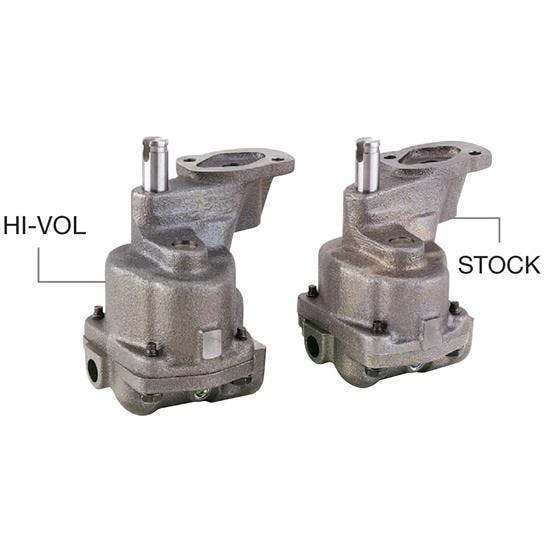

High Volume Oil Pump (more details)

There are many scenarios where a stock-volume oil pump won't provide the protection your engine needs. Engines with loose clearances (quick rebuilds or high-mileage engines) will need more oil volume to maintain a desired pressure. Engines operating at sustained high RPM (racing) also typically need more oil volume to maintain pressure in all oil galleries.

These high-volume oil pumps move 25% more oil by utilizing 1.500" long internal gears, which is .300" longer than stock pumps. Another benefit of high volume oil pumps is increased pressure at idle, providing some much needed peace of mind on the street. These pumps come preset to 55-65 PSI of oil pressure, with an additional spring to change that pressure setting if needed.

Oil pump Drive Shaft

These oil pump drive shaft kits from ARP are designed for use with heavy duty oil pumps for small block Chevy engines.

• Black oxide finish
• HD oil pumps
• Small Block Chevy
• Made in the U.S.A

Oil Pump Bolt Kit

These oil pump fasteners are for use with Chevy V8 high-volume pumps.  They come as a complete kit featuring a black oxide finish.

• High-Volume Pump
• Studs-Hex Head
• Chromoly-Black Oxide
• Chevy-Big/Small Block

577-OP55HV Instructions (PDF)
