#545C1448

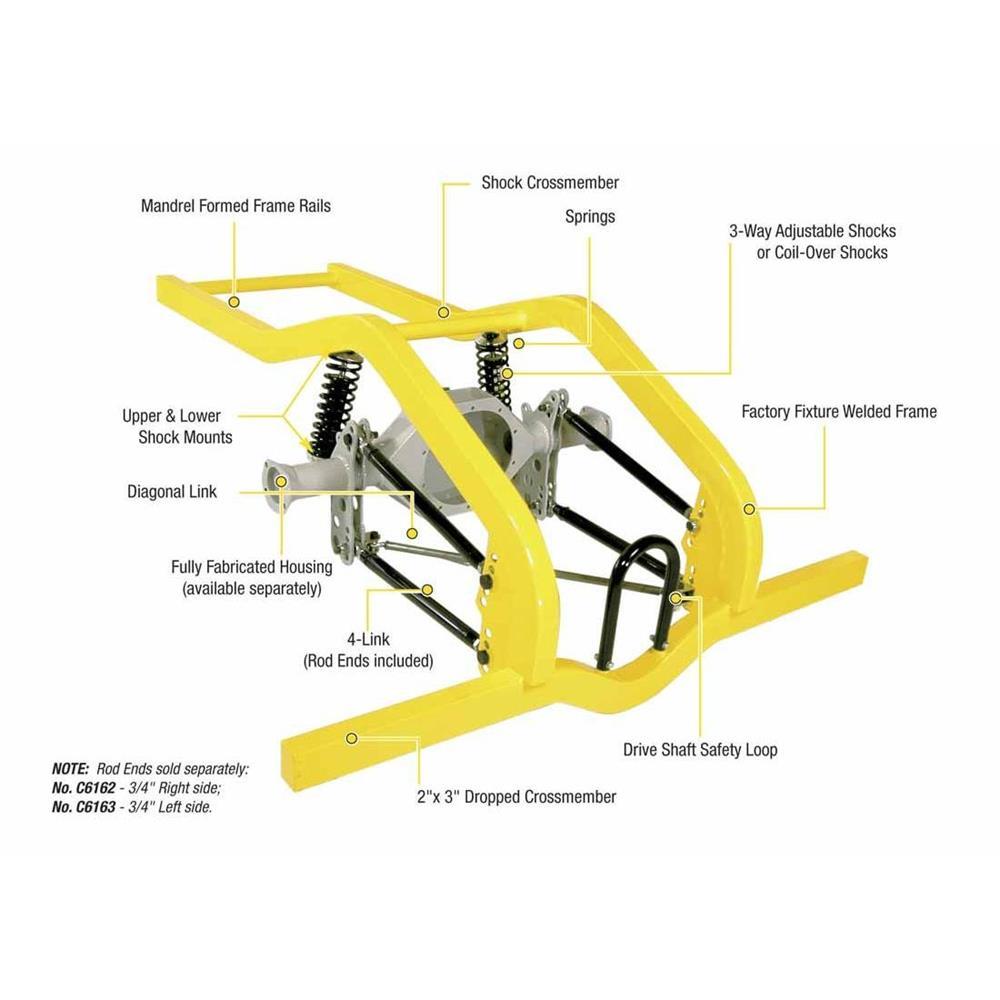

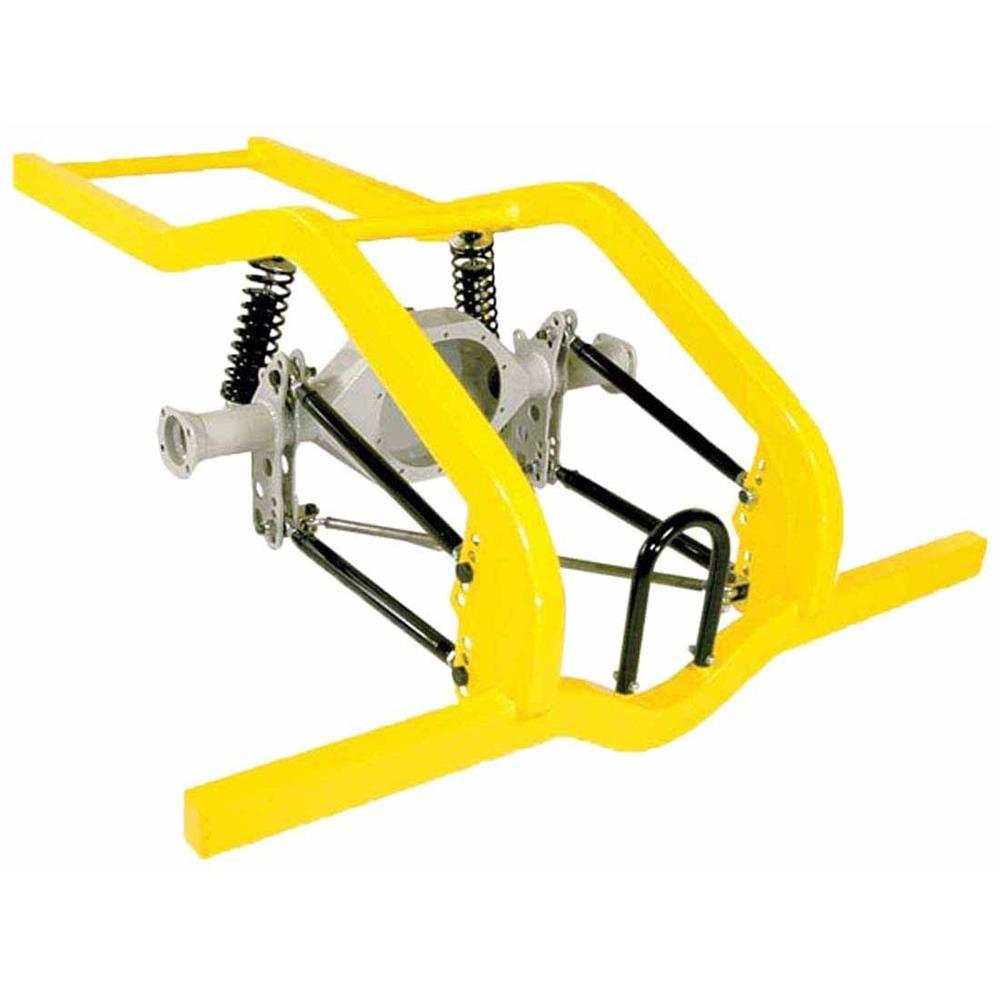

Moroso C1448 Framekit, Magnum Series 4-Link, 26 In
- 4-Link Frame Rails - Made To Order 4-week build time Rear axle housing NOT included - shown for assembly illustration purposes only
- 2" x 3" crossmember - Mandrel fromed for uniform profile; 3.5" drop center makes it adaptable virtually any chassis design; 60" wide
- Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, on-chassis adjustment
$2,685.99
/kit
Factory Shipped
$2,784.85
Save $98.86
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
- 4-Link Frame Rails - Made To Order 4-week build time Rear axle housing NOT included - shown for assembly illustration purposes only
- 2" x 3" crossmember - Mandrel fromed for uniform profile; 3.5" drop center makes it adaptable virtually any chassis design; 60" wide
- Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, on-chassis adjustment
- Driveshaft Loop - 1-1/8" O.D. mandrel formed Round Tube contains driveshaft during U-joint failure
- Shock Crossmember - Tubular design provides high strength with light weight
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyMoroso C1448 Details
Moroso C1448 Details
- 4-Link Frame Rails - Specially engineered profile clears suspension and axle components while accommodating low ride height and wide tires; Rugged 2" x 3" construction makes them strong without adding unnecessary weight
- 2" x 3" crossmember - Mandrel fromed for uniform profile; 3.5" drop center makes it adaptable virtually any chassis design; 60" wide
- Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, on-chassis adjustment
- Driveshaft Loop - 1-1/8" O.D. mandrel formed Round Tube contains driveshaft during U-joint failure
- Shock Crossmember - Tubular design provides high strength with light weight
- Upper & Lower Shock Mounts - Provides 6" of ride height adjustment
- Magnum Series 4-Link Kit, Part No. C2028 - Designed for ultra-high horse-powered race cars, offers enhanced adjustability over a ladder bar suspension for increased performance
- 12-Way Adjustable Coil-Over Shocks, Part No. C2770 - Externally adjustable with CNC machined billet aluminum threaded body that allows the included spring seats to be threaded up or down for preload and ride height, shocks also have 1" wide top/bottom bearings
- Springs - 2.5" I.D. x 12" long, premium-grade chrome silicone steel, powder coated for durability. Progressive Rate Springs for a vehicle with an overall weight range of 1,900-2,900 lbs.
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Moroso C1448 Specifications
Moroso C1448 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | C1448 |
| Brand | Moroso |
