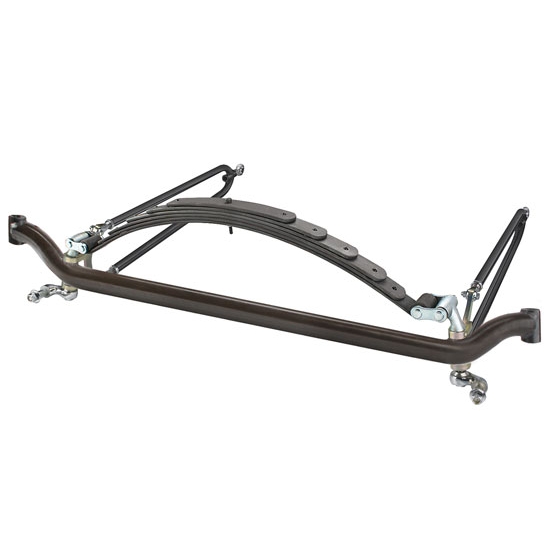

Model A to 1934 Ford Tube Axle Radius Rod Kit, Plain
Model A to 1934 Ford Tube Axle Radius Rod Kit, Plain

Model A to 1934 Ford Tube Axle Radius Rod Kit, Plain

Universal Fit, Straight Axle Front Suspension Type, 3 Inch Lowered Suspension Height Adjustment

2 Reviews | 1 Answered Question
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Model A to 1934 Ford Tube Axle Radius Rod Kit, Plain
Model A to 1934 Ford Tube Axle Radius Rod Kit, Plain
Zoomed In Image
Part # 91639505
Add to Cart
Call to Order
Add to Buildlist

What's In The Kit
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Add to Cart


Front Suspension Type:
Straight Axle
Suspension Height Adjustment:
3 Inch Lowered
Control Arm Style:
Radius Rod
Shock Type:
Not Included
Spring Type:
Leaf Spring
Spindle Style:
Ford Stock
Dropped Spindles:
Dropped Axle:
Dropped Control Arms:
Front Leaf Spring Style:
Spring-Over Axle
MFG. Part #:


Speedways Radius Rod Tube axle kits are designed to fit '28-'31 Model A and '32-'34 Ford frames. These tube axles require '37-'48 Ford passenger car spindles

Each kit includes:

  • 48" kingpin-to-kingpin tube axle, 3" dropped
  • 27" hairpin radius rods
  • Forged steel perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 6-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

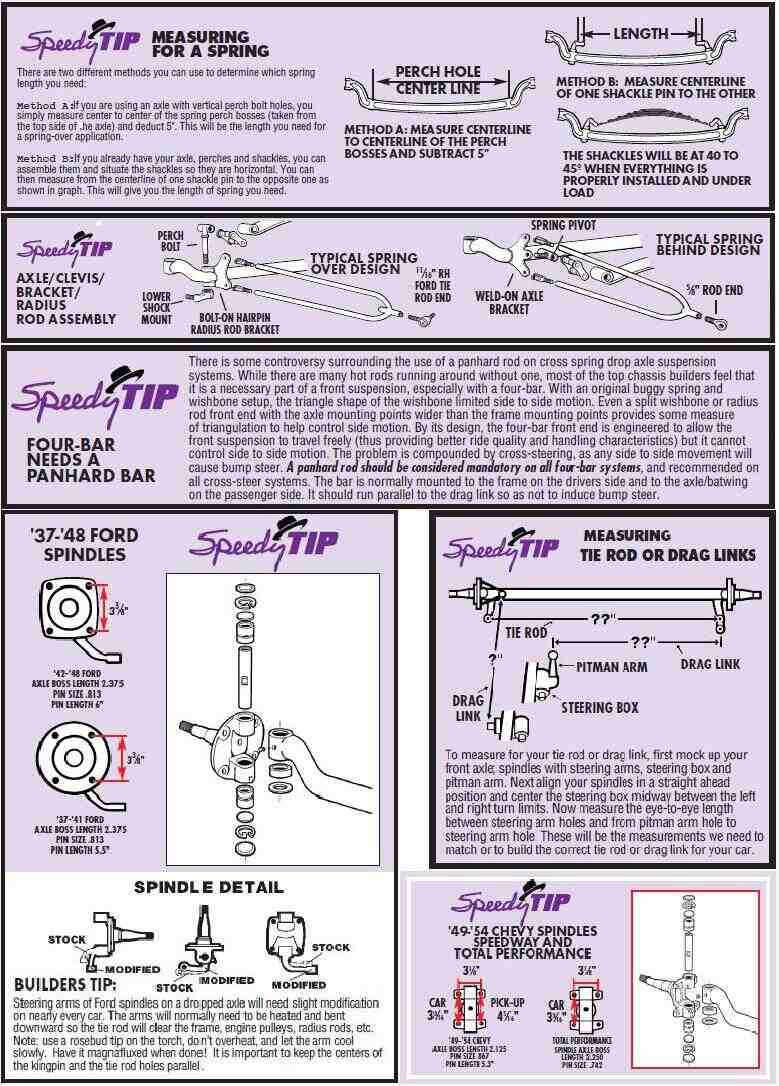

 Front Axle/Suspension Tech Tips (GIF)

Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Plain Front Tube Axle w/ Perch Bolt Holes, Ford Spindle
    Qty x 1
  • Super Glide® Front Spring, 48 Inch Axle, Reverse Eye, Plain
    Qty x 1
  • Radius Rod/Four-Bar Frame Mounting Brackets, 5/8 Hole, 4-3/8 Inch
    Qty x 1
  • Speedway Front Solid Axle Leaf Spring Perch, Plain Forged Steel
    Qty x 1
  • Front Hairpin Radius Rods, 27 Inch, Plain Steel
    Qty x 1
  • Speedway Bolt-On Hairpin Radius Rod Axle Brackets
    Qty x 1
  • Steel Clevis, 5/8-18 RH Thread, 3/8 Inch Slot, Zinc Plated
    Qty x 4
  • Standard Steel Heim Joint Rod Ends, 5/8-18 RH Male
    Qty x 2
  • Steel Jam Nuts, 5/8 Inch-18 Right Hand NF Fine Thread, Pack/6
    Qty x 1
  • Speedway 1-3/4 Nylon Spring Shackle Kit, Plain (Zinc) Finish, Pair
    Qty x 1
  • Speedway Forged Steel Lower Shock Mounts for Front Solid Axle, Zinc
    Qty x 1
  • Nut/Bolt Kit
    Qty x 1
  • Hairpin Front Axle Instructions
    Qty x 1
