MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229

MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229

Chevy Small Block V8, Chevy Big Block V8, External Ignition Box Required, HEI / Male Cap Type

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
X
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
MSD 85561 Chevy Billet Distributor Ignition Kit, 6425/8202/31229
Zoomed In Image
Part # 9109185
Save 5%
$785.31
$833.98
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos
  • Adjustable slip collar with 1.5‚ÄĚ of adjustment so you can be sure the distributor is installed correctly on a slightly taller block or decked heads
  • Designed for racing blocks with maximum increased deck height such as Alan Root, Merlin and Rocket Blocks
  • Ball bearing guide, long sintered lower bushing, oil seal, and an adjustable mechanical advance assembly
  • 6AL ignition control box features a higher output with 530 primary volts and 135mJ of spark energy
  • Engineered from the inside out, the 8.5 offers everything you have everwanted in a wire; incredibly low resistance without electronic interference

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

External Ignition Box Required:
Yes
Cap Type:
HEI / Male
Cap Terminal Style:
HEI / Male
Advance Type:
Mechanical
Trigger Style:
Magnetic
Hall Effect:
No
Sync Signal:
No
Trigger Sensors:
Single
Gear Material:
Iron
Gear Rotation:
Standard
Ignition Box Required:
Yes
Mechanical Tach Drive:
No
Slip Collar:
Yes
Housing Material:
Billet Aluminum
Housing Finish:
Natural
Rotor Rotation:
Clockwise
Marine Use:
No
Coil Included:
Yes
Sold in Quantity:
Kit

Info

Breathe new life into your Small Block Chevy or Big Block Chevy engine with this easy-to-install distributor ignition kit!

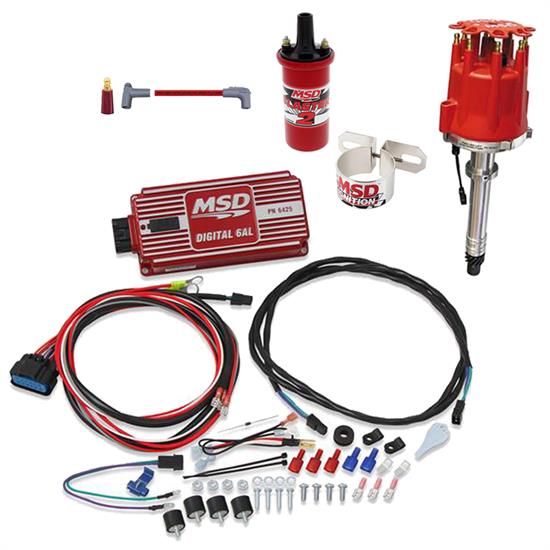

Kit Includes:

  • (1) MSD 85561 Chevy Billet Distributor with Slip Collar
  • (1) MSD 6425 6AL Digital Ignition Control Box
  • (1) MSD 8202 Blaster 2 Ignition Coil
  • (1) MSD 8213 Coil Bracket
  • (1) MSD 31229 Super Conductor Plug Wires, 8 Cyl 90 Deg Plug, 90 Deg Plug



MSD 85561 Chevy Billet Distributor with Slip Collar

  • CNC machined billet aluminum housing and billet aluminum base
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the RPM range
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
  • Advance plate and weights are fine blanked from Chromoly steel and QPQ coated for friction reduction
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Special oil tract improves lubrication to the distributor and cam gear
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Supplied with an HEI style distributor cap and rotor (accepts MSD Cap-A-Dapts)
  • Cap has HEI-style terminals¬†
  • Slip collar has 1.5" of adjustment
  • Iron distributor gear



MSD 6425 6AL Digital Ignition Control Box

  • Higher output with 530 primary volts and 135mJ of spark energy
  • Efficient components use less current to produce more power
  • Set an rpm limit on the MSD 6AL rev limiter¬†with two rotary dials
  • Has the same bolt pattern as the original 6AL, but¬†with a lower profile housing
  • Built-in LED for system checks
  • All wires exit the same side through a locked, sealed connector
  • Spark Energy: ¬†135-145 mJ per spark¬†
  • Primary Voltage: ¬†520-540 Volts¬†
  • Secondary Voltage: ¬†45,000 Volts¬†
  • Spark Series Duration: ¬†20 degree Crankshaft Rotation¬†
  • RPM Range: ¬†15,000 RPM with 14.4 Volts¬†
  • Voltage Required: ¬†12-15 Volts, 7 Volt Start¬†
  • Current Draw: ¬†.7 Amp per 1,000 RPM¬†
  • Weight and Size: ¬†1.7 lbs., 8"L x 4"W x 1.825"H¬†

Learn more about the benefits and features of the MSD 6AL Digital Ignition Control Box by reading StangTVs tech article.  MSDs Newest 6AL Takes Conventional Ignitions into the Digital Age.

Learn more about determining the proper MSD ignition control box for your application by reading our tech article. The Differences Between 6 Series MSD Ignition Control Units.



MSD 8202 Blaster 2 Ignition Coil

  • Special 100:1 windings, kept cool in an oil filled metal canister, are used to provide maximum build-up of voltage
  • The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • MSD Red metal canister is filled with a premium grade oil for cooling
  • CARB E.O. Approved
  • Turns ratio:¬† 100:1¬†¬†
  • Primary resistance:¬† .7 OHMs¬†¬†
  • Secondary resistance:¬†¬†4.5K OHMs¬†¬†
  • Inductance:¬†¬†8¬†mH¬†¬†
  • Maximum voltage:¬† 45,000 Volts¬†¬†
  • Peak current:¬† 140¬†mA¬†¬†
  • Spark duration:¬† 350 uS¬†¬†



MSD 8213 Coil Bracket

  • Offers easy, univer¬≠sal mounting for standard size ignition coils up to 2-1/4" in diameter
  • Uses a bolt and nut combination instead of the easily stripped self-tapping screw common on other brand brackets
  • Perfect for canister type coils
  • Adjustable from 1-3/4" to 2-3/8" with slight bending of mounting tabs



MSD 31229 Super Conductor Plug Wires

  • Engineered from the inside out, the 8.5 offers everything you have everwanted in a wire; incredibly low resistance without electronic interference
  • In a single 12 inch length of Super Conductor Wire there is only 40 - 50 ohms of resistance
    • The lowest resistance of any helically wound wire
    • Copper alloy conductor is used due to its great voltage carrying capabilities
    • The low resistance results in less loss in spark energy so more reaches the spark plug
    • The conductor is wound extremely tight around a special center core -¬†over 40 feet of conductor wrapped into a single foot of plug wire
    • This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) "choke"
    • This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle
    • Outer sleeve that surrounds the conductor features a proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears



Notes

Designed for racing blocks with maximum increased deck height such as Alan Root, Merlin and Rocket Blocks.



Charts

547-5561 Instructions (PDF)

547-6425 Instructions (PDF)

MSD Tech Bulletin

MSD Ignition Installation Instructions (PDF)

Installation Instructions (PDF)



Warranties

For warranty information, please visit http://www.msdhelp.com/



Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • MSD 85561 Chevy Billet Distributor with Slip Collar
    Qty x 1
  • MSD 6425 6AL Digital Ignition Control Box
    Qty x 1
  • MSD 8202 Blaster 2 Ignition Coil
    Qty x 1
  • MSD 8213 Coil Bracket
    Qty x 1
  • MSD 31229 Super Conductor Plug Wires, 8 Cyl 90 Deg Plug, 90 Deg Plug
    Qty x 1
