Product Summary

305, 327, 350, 400, Spiral Core Conductor Style, Red

  • There is only 40 - 50 ohms of resistance in 12" of wire
  • Conductor is wound extremely tight around a special center core
  • Features incredibly low resistance without electronic interference
  • MSD uses a copper alloy conductor due to its great voltage carrying capabilities
  • Loom set is supplied with two 4-wire, two 3-wire, and four 2-wire separators

Comes as a Kit

Key Specs

MFG. Part #31359 8843
BrandMSD

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Spark Plug Wires

The MSD 8.5mm Super Conductor Wire is "the" performance wire. Engineered from the inside out, the 8.5 offers everything you have ever wanted in a wire; incredibly low resistance without electronic interference! In a single 12 inch length of low resistance spark plug wire there is only 40 - 50 ohms of resistance! That is the lowest resistance of any helically wound wire.

To accomplish this, MSD uses a copper alloy conductor due to its great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) "choke". This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears.

Wire lengths:

  • 17.75"
  • 24.75"
  • 25.00"
  • 25.25"
  • 27.75"
  • 28.00"
  • 35.00"
  • 35.25"
  • 39.00"

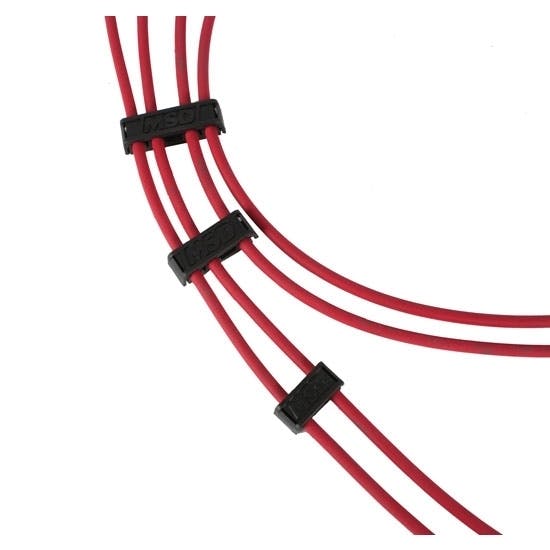

Wire Loom Kit

Separate your plug wires to keep them from arcing across one another with these MSD Pro-Clamp wire separators.

Set is supplied with two 4-wire, two 3-wire, and four 2-wire separators.

Specifications

KEY SPECS
MFG. Part #31359 8843
BrandMSD
GENERAL
Conductor StyleSpiral Core
AssembledYes
Cap Terminal StyleHEI / Male
Cap TypeHEI / Male
Spark Plug Wire ColorRed
Spark Plug Boot EndsEight 90 degree
Spark Plug Boot MaterialSilicone
Spark Plug Boot ColorGray
Diameter8.5 mm
RFI SuppressionYes
Coil Wire IncludedYes
Spark Plug Wire Resistance50 ohms/ft.
Sold in QuantityKit
