MSD 6AL Digital Ignition Control Box and Blaster HVC Coil

Control Box

The MSD Digital 6AL features a higher output with 530 primary volts and 135mJ of spark energy. Efficient components use less current to produce more power. Set an rpm limit on the MSD 6AL rev limiter with two rotary dials. Has the same bolt pattern as the original 6AL, but with a lower profile housing. Built-in LED for system checks. All wires exit the same side through a locked, sealed connector. Compatible with 4, 6 and 8-cylinder engines.

Learn more about the benefits and features of the MSD 6AL Digital Ignition Control Box by reading StangTVs tech article. MSDs Newest 6AL Takes Conventional Ignitions into the Digital Age.

Learn more about determining the proper MSD ignition control box for your application by reading our tech article.The Differences Between 6 Series MSD Ignition Control Units.

Ignition Coil

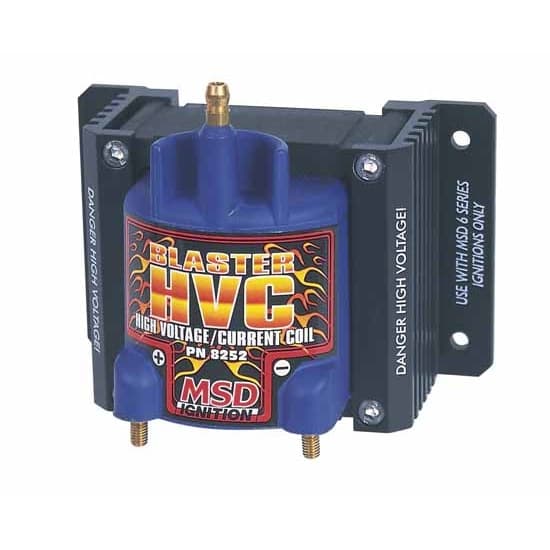

The Blaster HVC Coil is designed for high rpm, long duration applications such as road course and circle track racing using an MSD 6 Series Ignition.

• Designed for high rpm, long duration applications
• Works with electronic ignitions and MSD Ignition Controls (ballast resistor required for points systems)
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Windings are encased in blue epoxy and secured with extruded brackets
• Spark plug style terminal and threaded brass primary studs
• Supplied with rubber shock mounts
• CARB E.O. Approved
• 4.16736111111111
• 1.38K OHMs
• 7 mH
• 42,000 Volts
• 300 mA
• 200 uS

547-6425 Instructions (PDF)

MSD Tech Bulletin (PDF)

• Spark Energy:  135-145 mJ per spark
• Primary Voltage:  520-540 Volts
• Secondary Voltage:  45,000 Volts
• Spark Series Duration:  20 degree Crankshaft Rotation
• RPM Range:  15,000 RPM with 14.4 Volts
• Voltage Required:  12-15 Volts, 7 Volt Start
• Current Draw:  .7 Amp per 1,000 RPM
• Weight and Size:  1.7 lbs., 8"L x 4"W x 1.825"H
