#54732813

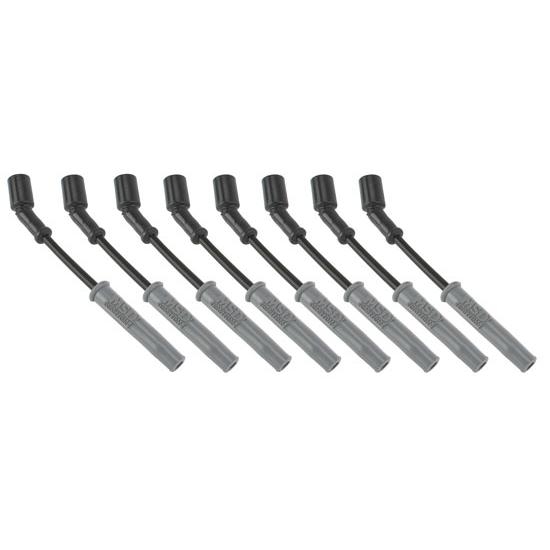

MSD 32813 8.5mm LS1 Black Spark Plug Wires Set
1 Review
|
Ask a Question
$109.95
set
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
LS1, Spiral Core Conductor Style, 8.5 mm Diameter, Gray
See more details
Key Specs
MFG. Part # | 32813 |
Brand | MSD |
Conductor Style | Spiral Core |
Diameter | 8.5 mm |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyMSD 32813 Details
MSD 32813 Details
The MSD 8.5mm Super Conductor Wire is "the" performance wire. Engineered from the inside out, the 8.5 offers everything you have ever wanted in a wire; incredibly low resistance without electronic interference! In a single 8 inch length of Super Conductor Wire there is only 40 - 50 ohms of resistance! That is the lowest resistance of any helically wound wire.
To accomplish this, MSD uses a copper alloy conductor due to its great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) "choke". This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears. The MSD 8.5mm Super Conductor Plug Wire is available in Universal Kits.
Application
Guides & Documents
MSD 32813 Specifications
MSD 32813 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 32813 |
Brand | MSD |
Conductor Style | Spiral Core |
Diameter | 8.5 mm |
GENERAL | |
Assembled | Yes |
Spark Plug Wire Color | Black |
Spark Plug Boot Ends | Eight multi-angle |
Spark Plug Boot Material | Silicone |
Spark Plug Boot Color | Gray |
RFI Suppression | Yes |
Distributor Terminal Ends | Coil pack |
Distributor Boot Material | Silicone |
Distributor Boot Color | Gray |
Coil Wire Included | No |
Wire Routing Type | Universal |
Spark Plug Wire Resistance | 50 ohms/ft. |
GTIN Code | 085132328130 |
Sold in Quantity | Set |
