Lower Control Arm Kit w/Tall Ball Joints-3/8, GM A-Body/Sport Mod

Complete your front suspension with this convenient assembly from Speedway Motors.  These control arm kits are perfect for Chevelle stub Modifieds and Sport Mod race cars.

• New stamped lower control arms
• A-Arms retain stock suspension geometry
• Steel bushings minimize alignment change during cornering since they do not deflect

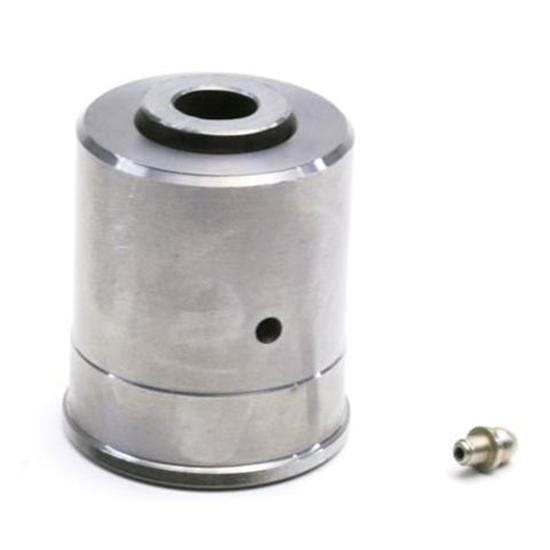

• Grease zerks included for regular lubrication
• Shock mount features 1/2" hole for spherical bearing or heim style shocks
• GM truck ball joints feature longer/taller stud to change the pivot point resulting in a raised roll center point for improved handling- equivalent to Moog# K6117
• 3/8" Taller (than stock) Ball Joint Studs
• IMCA approved

Kit Includes:

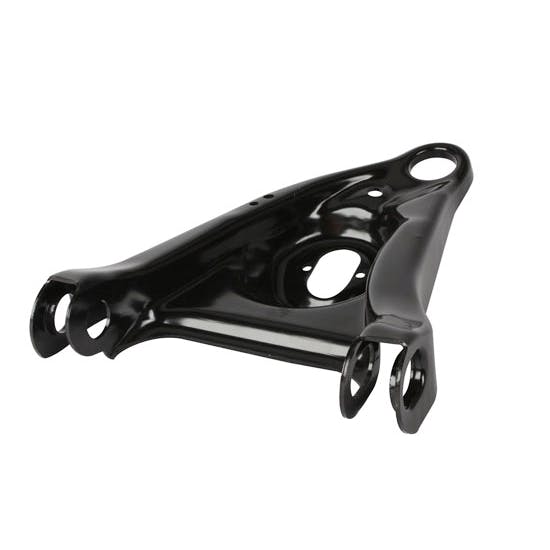

• (1) 68-72 GM A-Body Lower Control Arm - Left Side

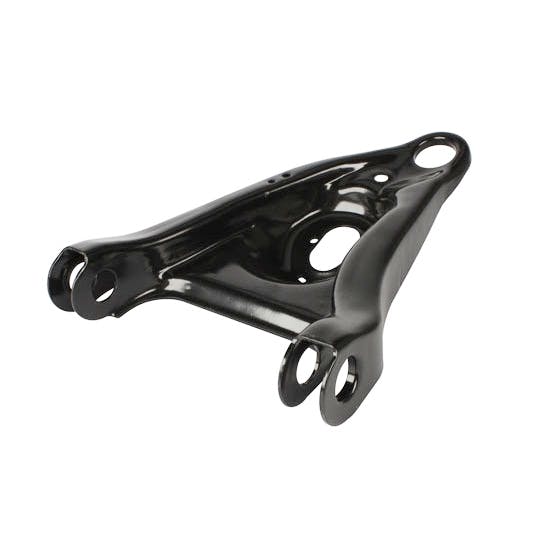

• (1) 68-72 GM A-Body Lower Control Arm - Right Side

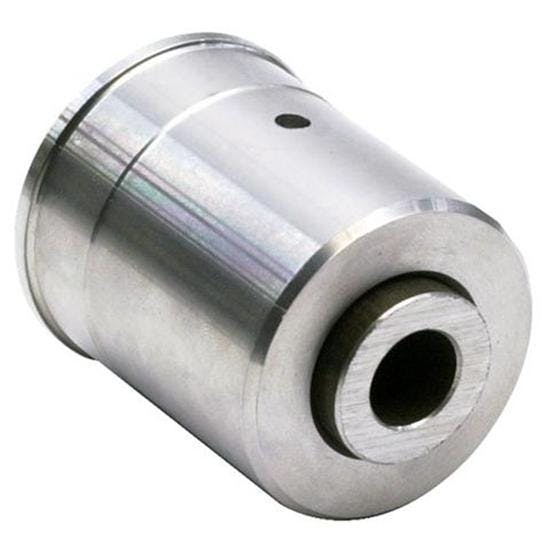

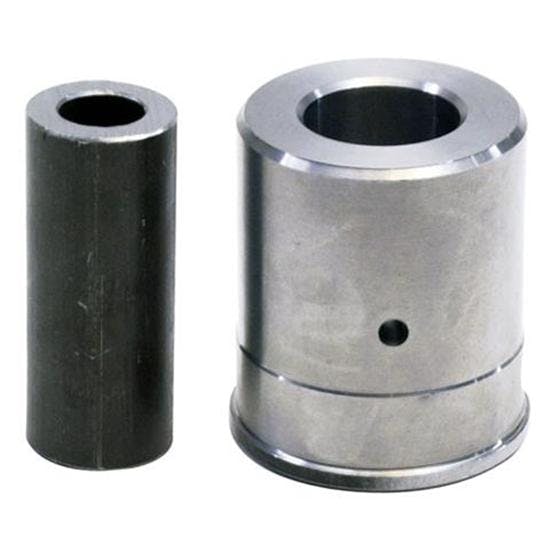

• (2) Steel Lower Control Arm Bushings - 1.400 OD x .500 ID
• (2) Steel Lower Control Arm Bushings - 1.650 OD x .500 ID

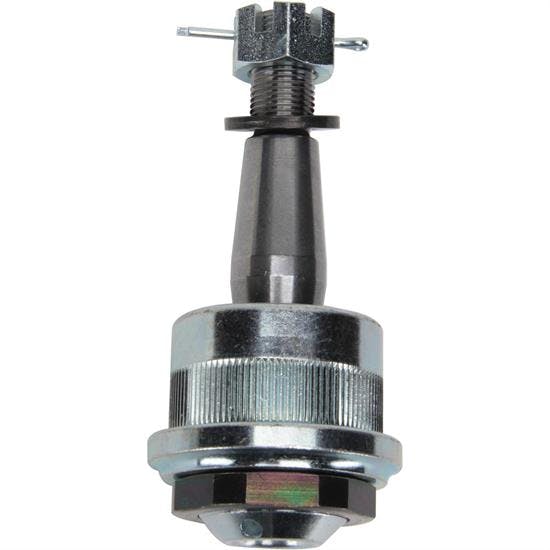

• (2) 73-95 Truck K6117 Style 3/8" Longer Stud Lower Ball Joints

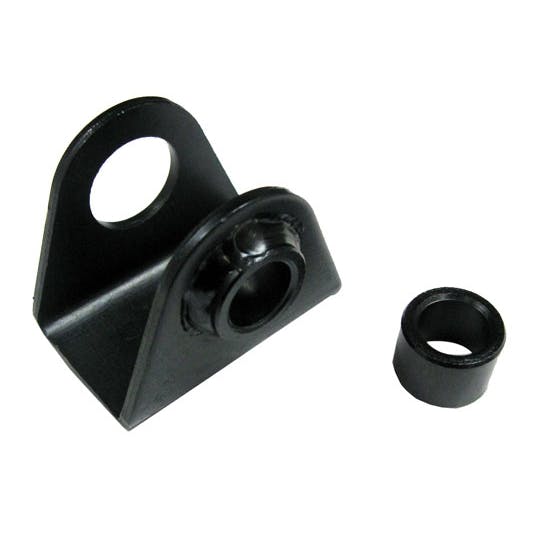

• (2) Weld-on Lower Mounts - Bearing End Shocks

Installation Notes:

• When assembling this kit, both the control arm bushings and ball joints will need to be tack welded / spot welded in place. With these components being aftermarket and best for performance and handling as an aftermarket/off-road application, they will NOT have a press fit. Once test fitted to your control arm and chassis you will need to securely tack weld / spot weld the bushings and ball joints in place.
• The shock mount bracket will also need welded on.
