Lower Control Arm Kit w/Tall Ball Joints-1/2, GM A-Body/Sport Mod

#9108651

Lower Control Arm Kit w/Tall Ball Joints-1/2, GM A-Body/Sport Mod

Name: Lower Control Arm Kit w/Tall Ball Joints-1/2, GM A-Body/Sport Mod
Brand: Speedway Motors
SKU: 9108651
Price: 459.99 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Perfect for Chevelle stub Modifieds and Sport Mod race cars
New stamped lower control arms
A-Arms retain stock suspension geometry

Ball Joint Type:

1/2" Taller

3/8" TallerStandard

$459.99

/kit

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

10.50" Mount Center to Ball Joint Center, Steel

Perfect for Chevelle stub Modifieds and Sport Mod race cars
New stamped lower control arms
A-Arms retain stock suspension geometry
Steel bushings minimize alignment change during cornering since they do not deflect
Longer/taller ball joint stud to change the pivot point resulting in a raised roll center point for improved handling

Comes as a Kit

View Kit Components

See more details

Key Specs

Control Arm Style	Stamped
Position	Front Lower
Ball Joint Type	Press-in
Bushing Material	Steel
Control Arm Material	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9108651 Details

Complete your front suspension with this convenient assembly from Speedway Motors. These control arm kits are perfect for Chevelle stub Modifieds and Sport Mod race cars.

New stamped lower control arms
A-Arms retain stock suspension geometry
Steel bushings minimize alignment change during cornering since they do not deflect
Grease zerks included for regular lubrication
Shock mount features 1/2" hole for spherical bearing or heim style shocks
GM truck ball joints feature longer/taller stud to change the pivot point resulting in a raised roll center point for improved handling- equivalent to Moog# K6117
1/2" Taller (than stock) Ball Joint Studs
IMCA approved

Kit Includes:

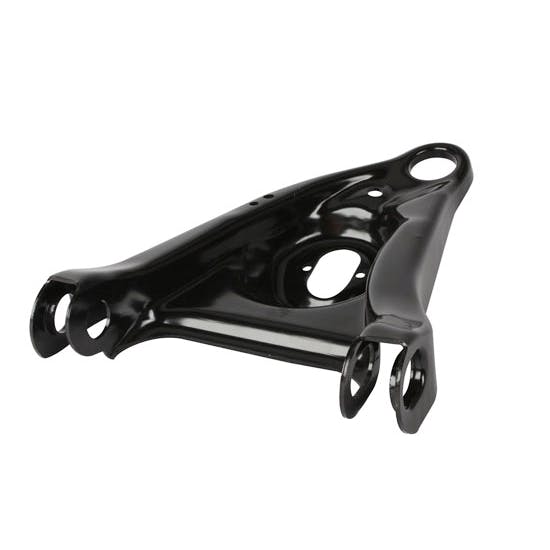

(1) 68-72 GM A-Body Lower Control Arm - Left Side

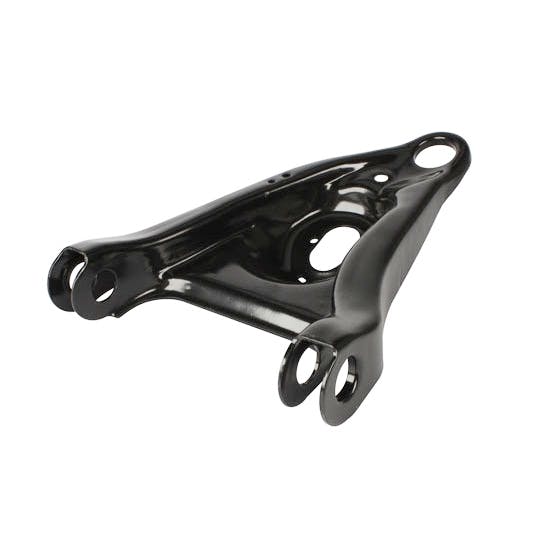

(1) 68-72 GM A-Body Lower Control Arm - Right Side

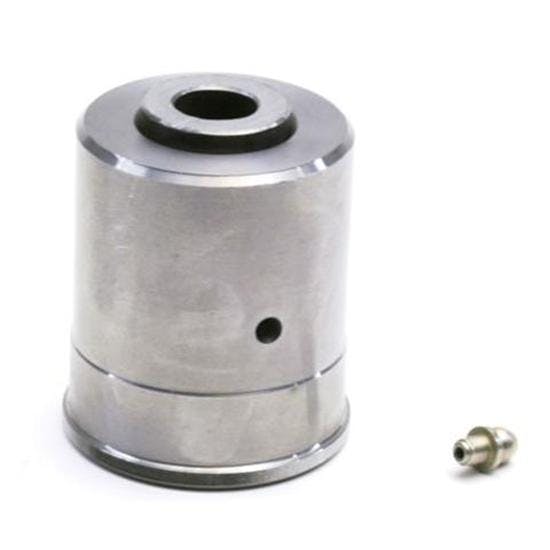

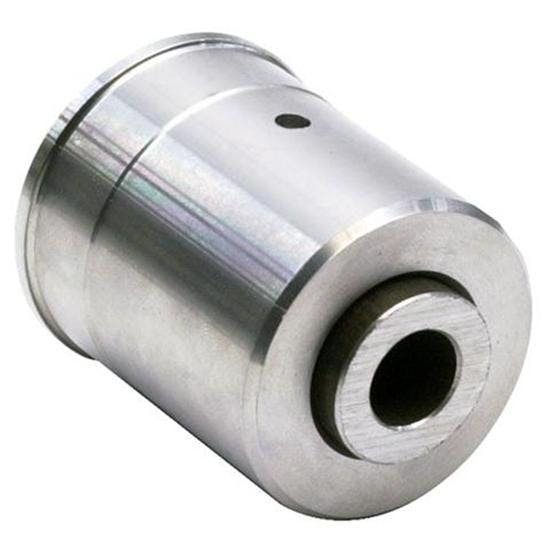

(2) Steel Lower Control Arm Bushings - 1.400 OD x .500 ID

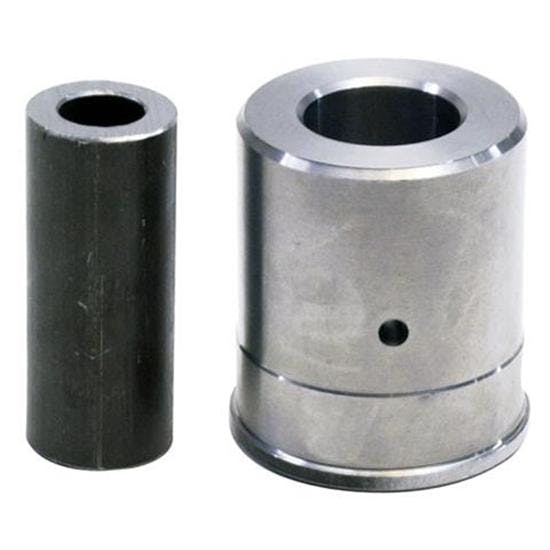

(2) Steel Lower Control Arm Bushings - 1.650 OD x .500 ID

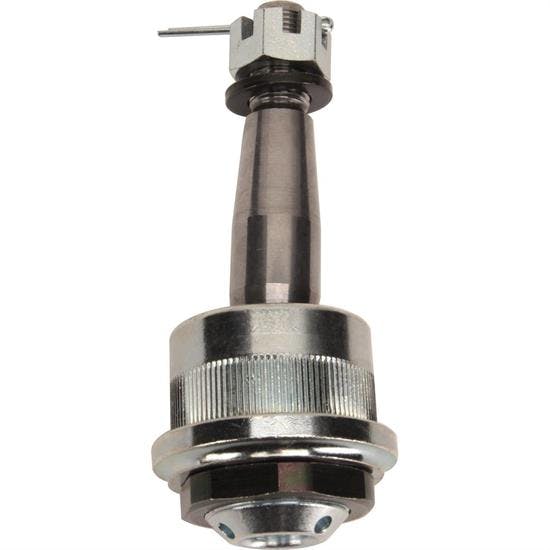

(2) 73-95 Truck K6117 Style 1/2" Longer Stud Lower Ball Joints

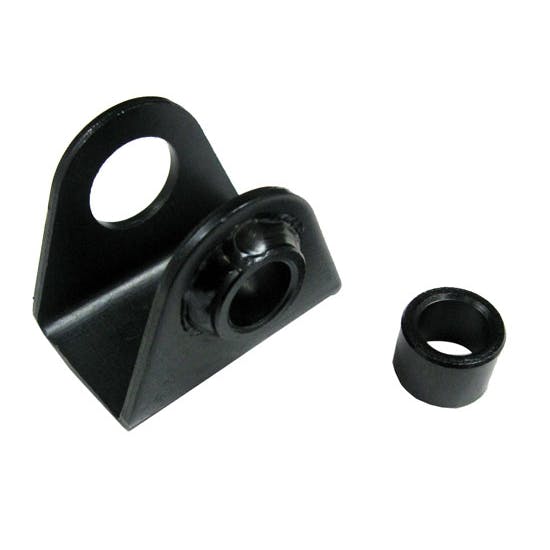

(2) Weld-on Lower Mounts - Bearing End Shocks

Installation Notes:

When assembling this kit, both the control arm bushings and ball joints will need to be tack welded / spot welded in place. With these components being aftermarket and best for performance and handling as an aftermarket/off-road application, they will NOT have a press fit. Once test fitted to your control arm and chassis you will need to securely tack weld / spot weld the bushings and ball joints in place.
The shock mount bracket will also need welded on.

Guides & Documents

Control Arm Bushings Technical Information (91634034)

Control Arm Bushings Technical Information (91634036)

Speedway Motors 9108651 Specifications

KEY SPECS
MFG. Part #	9108651
Brand	Speedway Motors
Control Arm Style	Stamped
Position	Front Lower
Ball Joint Type	Press-in
Bushing Material	Steel
Control Arm Material	Steel
Hardware Included	No
Adjustable	No
Finish	Painted

GENERAL
Mount Center to Ball Joint Center	10.50"
Material Type	Steel
Ball Joint Included	Yes
Sold in Quantity	Kit
Degree of Taper	10 degree
Notes	1/2" taller than stock ball joint stud.
Bushing Included	Yes
