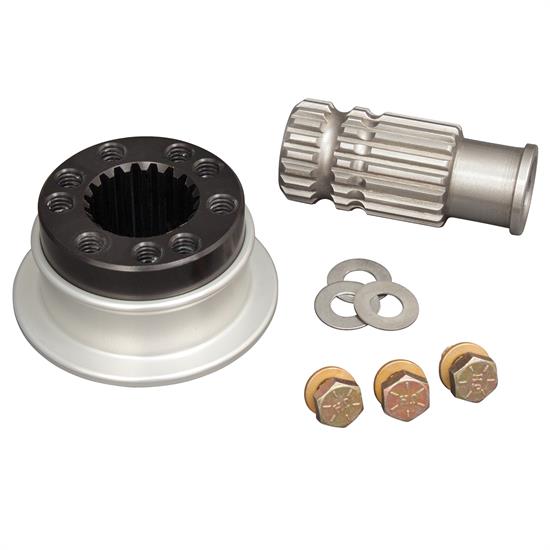

Longacre® 52-56605 Precision Fit Splined Hub Quick Disconnect
- This steering wheel quick disconnect kit has a micro-finished spud and hard anodized splined hub for a tight fit, yet is easy to remove and install
- Stay safe - features 2 sets of retaining grooves; if the ring doesn't engage it will catch on the second groove rather than slip off on the track
- Fits better - it includes a precision-machined hex bore for a great fit and a standard 3-bolt wheel mounting pattern
- The steel 'spuds' can be installed on both 3/4" and 5/8" steering shafts
- Multiple sets of mounting holes so you can 'clock' your wheel three times closer
Precision fit splined hub for better steering control
Any play in the steering - including the hub - takes away control by the driver letting the car 'wander around'. This precision hub has a micro-finished spud and Hard Anodized splined hub for a super tight fit, yet is easy to remove and install.
Plus, there are multiple sets of mounting holes so you can 'clock' your wheel 3 times closer.
For safety there are 2 sets of retaining grooves. If you don't get the ring engaged it will catch on the second safety groove rather than come off on the track.
The steel 'spuds' can be installed on both 3/4" and also 5/8" shafts.
- Spline hub - pull ring release with double safety grooves
- Welds to 3/4" or 5/8" steering shaft
- Aluminum hub
- 3 Mounting holes “ 5/16" on a 1-3/4" bolt circle (hole distance 1-1/2" center-to-center)
Weight: .85 lbs. including bolts
(WILL NOT FIT 290mm and 320mm flat suede wheels - PNs 56911 & 56913)
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
