Lokar XL Floor Mount Throttle/Brake Pedal Kit, with Cable
Universal Fit, Billet Aluminum, Brushed
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.

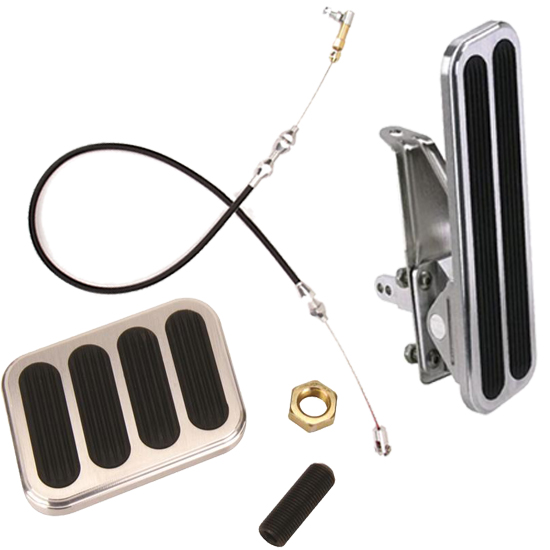

Outfit your pedals in style with this complete pedal/pad kit from Speedway Motors. These universal kits feature an Eliminator Series floor mount gas pedal, 36" long throttle cable, and standard size brake pedal pad.
- (1) Lokar FMG-6098 Eliminator Floor Mount Throttle Pedal
- (1) Lokar BFG-6013 XL Brake Pedal Pad w/Rubber
- (1) Lokar TC-1000U36 Universal Black Throttle Cable Kit
Floor Mount Throttle Pedal
Recipient of NSRA best new product, Lokar's Eliminator Floor Mount Throttle Pedal is designed with the Signature Lokar Quality you have come to expect. Pedal eliminates routing cables through firewall and comes equipped with a billet aluminum splined adjustable shaft and stainless steel "under-the-floor" cable mounting bracket. Mounts in multiple positions for floor and toe board angles. Designed with built-in pedal travel stops. Requires 36" "U-Cut-to-Fit" Lokar Throttle Cable for most applications. Order 48" cable for LS1, Ramjet and Vortec applications.
- Comes equipped with a billet aluminum splined adjustable shaft and stainless steel "under-the-floor" cable mounting bracket
- Mounts in multiple positions for floor and toe board angles
- Designed with built-in pedal travel stops
- Requires 36" "U-Cut-to-Fit" Lokar Throttle Cable for most applications
- Pedal pad is 2” by 6-3/4”
- Pad is parallelogram in shape and NOT rectangle
- Brushed billet aluminum finish
36 Inch Throttle Cable Kit
Lokar universal black throttle cables are designed with a specially extruded Teflon liner for unparalleled smoothness and long life. Cables are equipped with aluminum fittings and aluminum ferrules to eliminate fraying. “U-Cut-to-Fit” outer housing is 36" length with a “U-Cut-to-Fit” stainless inner wire. Clevis is designed without cotter pins or set screws. Adapts to factory and aftermarket pedals.
Cables can be cut to fit nearly any installation. Kits come complete with installation instructions.
491-1000U Instructions (PDF)
XL Series Brake Pedal Pad
Lokar's billet aluminum brake pedal cover is EXTRA LARGE for those seeking more substance under foot. These brake pedal pads mount with a 1/2 - 20 stud built into the back of the pad.
- XL Series Pad Size, measures 3-3/4" wide x 2-3/4" tall
- Rubber Insert Design Pad
- Brushed Aluminum Finish
What's In The Kit
Lokar FMG-6098 Eliminator Floor Mount Throttle Pedal, Billet AlumPart # 4916098Qty x 1
Lokar TC-1000U36 36 Universal Black Throttle Cable KitPart # 4911000U-36Qty x 1
Lokar BFG-6013 Billet Aluminum XL Series Brake Pedal Pad w/RubberPart # 4916013Qty x 1
