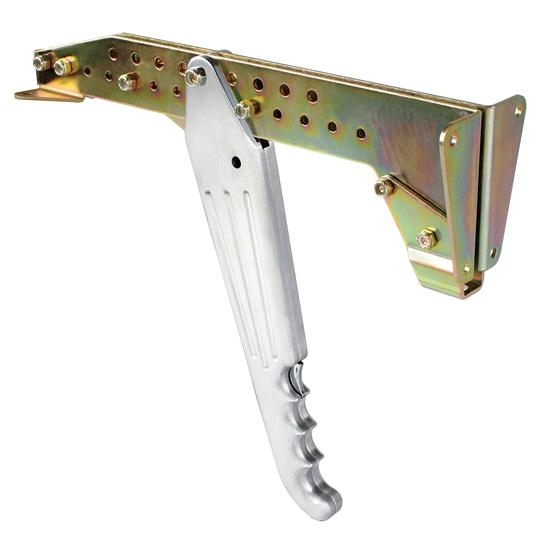

Lokar EHB-9201 Under-Dash Emergency Brake Arm, Chrome
Universal Fit, Stainless Steel, Chrome, 13.25" Overall Length, 1.00" Overall Thickness
Lokar's Under-the-Dash Hand Operated Emergency Brake gives you ease of operation along with a clean, out of the way emergency brake. There are no cables entering through the firewall. It fits in a space as small as 11" from the firewall to dash. Ratchet cut gear plate and lock are heat treated for strength and safety. The lever has been designed with durability in mind. The one piece design of the lever with a pistol grip and trigger allows for comfortable leverage operation.
This hand operated emergency brake arm is the perfect solution when space is at a premium. The sturdy, easy grip e brake handle has a chrome plated finish. Hand operated brake arm works with Connector Cable kit 491-8001HT, which is available in stainless and black, and Universal Cables 491-80FU.
- Adjustable from 11" to 15" firewall to dash
- Length of the arm measures 13" from the pivot point to the bottom of the grip
- Dash to firewall adjustable bracketry
- Various location mounting capability
- Simple installation with universal mounting system
- Pistol grip with trigger release
- No welding necessary
- Complete with instructions and all hardware
- Gold iridited brackets
- Connector Cables sold separately
- Use EC-8001U or EC-8001HT connector cable
