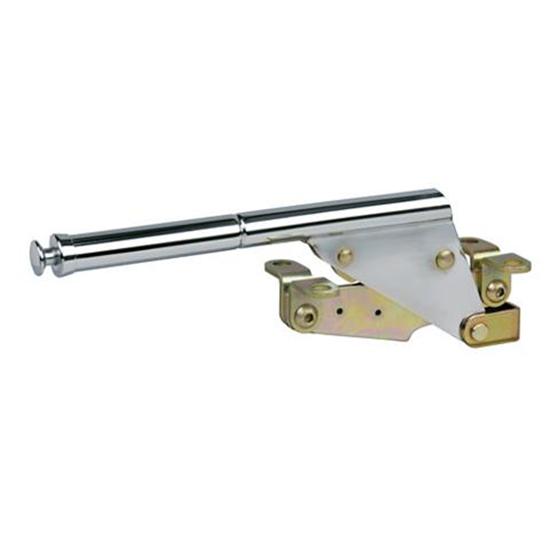

Lokar EHB-7000F Floor Mount Emergency Hand Brake, Chrome Finish

This Lokar Floor Mount Emergency Hand Brake features a chrome plated steel e brake handle and is designed after the automotive industry standards. The ratchet cut gear plate and lock are heat treated for strength and safety. Special feature includes 4-point mounting capabilities for floor mount or side mounting for custom applications.

Comes complete with clevis for installation with Lokar Emergency Brake Cables, Lokar # EC-80FU, Speedway Motors # 491-80FU suggested below. Cables are sold separately.

Lokar Install Tip:  Every think about mounting the floor mount hand brake sideways in front of your seat?  You can!

Handle:

• Length of upper chrome handle is 9-1/8 " from rear to end of release button
• From end of release button to center of clevis pin is 10-5/16 "
• From pivot point to end of release button is 9-3/16 "
• From pivot point to center of clevis pin is 1-7/8 "
• From center of clevis pin to top of handle is 3-1/4 "

Mounting:

• Mounting bolt centers for horizontal brackets are 4-11/16 "
• Horizontal mounting bracket holes are 2 " center to center side to side
• Horizontal mounting bracket holes are also 4-11/16 " center to center from front to rear
• From center of clevis pin to end of clevis is 1-1/8 "
• Clevis referred to is at bottom of assembly and where the e-brake cables attach
