Lokar EC-81FHT Stainless Wilwood Style Rear Disc Emergency Brake Cable

Kit is designed for use with Lokar's Floor Mount Emergency Hand Brake, and in conjunction with Lokar's Connector Cables. Kit comes equipped with quality one-piece aluminum adjusters and aluminum ferrule to eliminate fraying of stainless housing. Outer housing is designed with specially extruded liner for extended life of the cable. Stainless inner cable resists moisture. Design allows rear end backing plate fittings to be removed without removing brake cables. Lokar cables also feature adjustable cable lock and clevis. Kit is complete with cable bracket and spacers. Kit includes two 8 foot outer housings that "U-Cut-to-Fit" and are available in stainless housing. Application fits Wilwood Style Rear Disc w/ Internal Drum E-Brake.

• For use with Lokar's Floor Mount Emergency Hand Brake
• Quality one-piece aluminum adjusters and aluminum ferrule to eliminate fraying of stainless housing
• Designed with specially extruded liner for extended life of the cable
• Stainless inner cable resists moisture

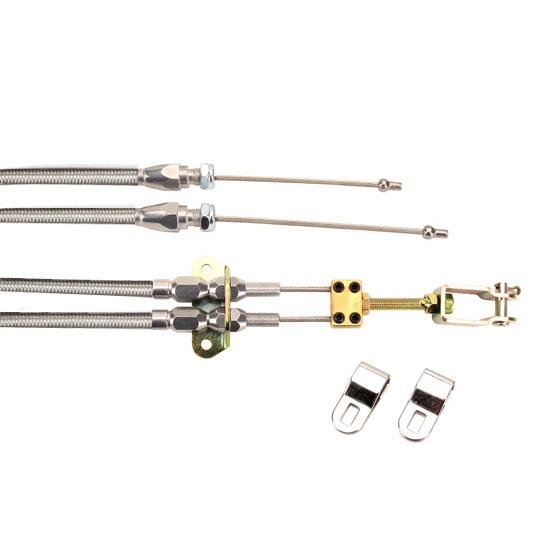

• Kit is complete with cable bracket, clevis, spacers and two 8 foot outer housings
• Fits Wilwood Style Rear Disc w/ Internal Drum E-Brake

For all technical/repair/warranty product questions or needs, please contact Lokar directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

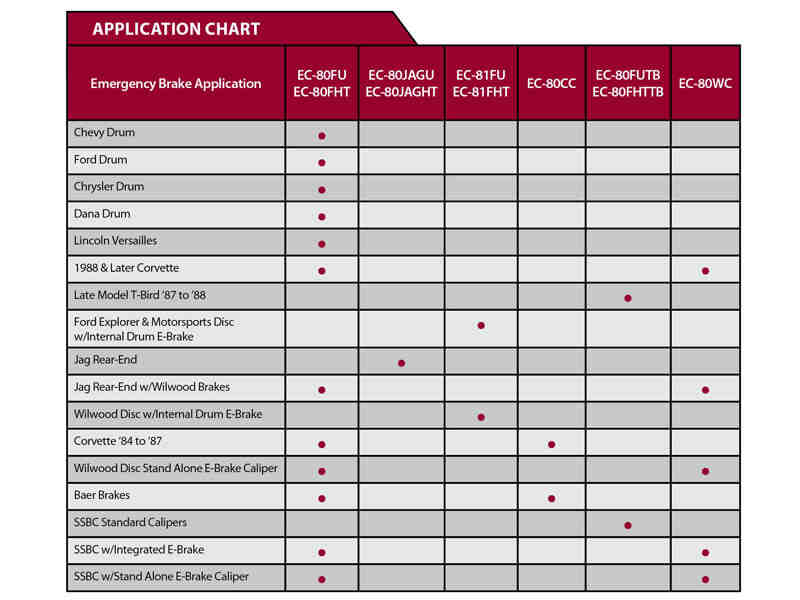

Emergency Brake Cable Application Chart (Link)

49181000 Installation Instructions (PDF)
