Lokar BAG-6073 1955-1957 Chevy Billet Alum Throttle Pedal Assembly

#491BAG6073

Lokar BAG-6073 1955-1957 Chevy Billet Alum Throttle Pedal Assembly

Name: Lokar BAG-6073 1955-1957 Chevy Billet Alum Throttle Pedal Assembly
Brand: Lokar
SKU: 491BAG6073
Price: 231.95 USD
Availability: InStock

Write a Review

Ask a Question

$231.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

55-57 Chevy, Aluminum, Brushed, 5" Pedal Length

See more details

Key Specs

MFG. Part #	BAG-6073
Brand	Lokar
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Lokar BAG-6073 Details

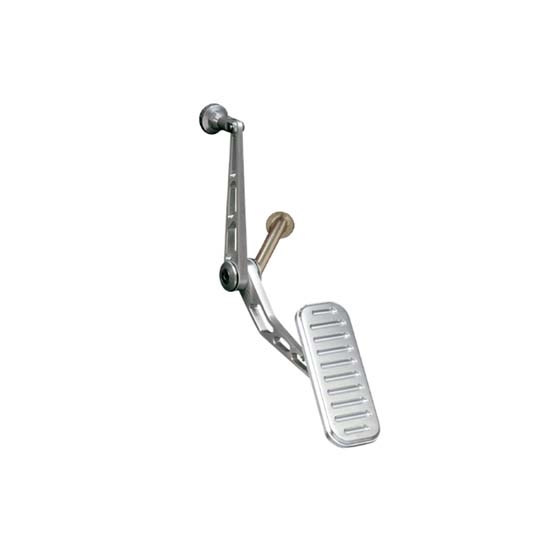

The Lokar 1955-1957 Chevy billet aluminum throttle assembly is designed to convert original rod linkage to Lokar's modern throttle cable system. It is designed to mount in the original firewall location with offset bezel washers to align throttle cable through firewall. The throttle pad is spring-loaded like OEM design and removable lower arm is splined for versatility in mounting to the right or left of the mounting bracket. Lokar's exclusive upper arm is a one-piece design. Shaft and arm are one piece, requiring no pins. Outside dimensions of the throttle pedal measures 2 x 5 inches.
Designed To Bolt Into Stock Location
Change From Rod Style Throttle To Throttle Cable
Spring Loaded Like OEM Design
Splined For Right Or Left Adjustment Of Foot Pad
Made In The U.S.A.
Lifetime Warranty

For all technical/repair/warranty product questions or needs, please contact Lokar directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

Warranty Information

Speedway Motors cannot facilitate the return of defective Lokar products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Lokar at +1 (865)-824-9767 or by emailing tech support

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Lokar BAG-6073 Specifications

KEY SPECS
MFG. Part #	BAG-6073
Brand	Lokar
Material Type	Aluminum

GENERAL
Finish	Brushed
Pedal Length	5"
Pedal Width	2"
Pedal Mount Location	Firewall Mount
Pedal Shape	Rectangle
Overall Width	2.00"
Pedal Pad Finish	Brushed
Pedal Pad Material	Aluminum
Notes	Small block applications only.
GTIN Code	815470005260
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1955-1957 Chevy Bel Air

1955-1957 Chevy Corvette

1957 Chevy Del Ray

1955-1957 Chevy Nomad

1955-1957 Chevy One-Fifty Series

1955-1957 Chevy Sedan Delivery

1955-1957 Chevy Truck

1955-1957 Chevy Two-Ten Series
