LS Classic Series GMLS3014 57 Fuelie Style Intake Cathedral Heads
LS Classic Series GMLS3014 57 Fuelie Style Intake Cathedral Heads
Modern Classic

|

#491GMLS3014

LS Classic Series GMLS3014 57 Fuelie Style Intake Cathedral Heads

$5,153.95

/kit

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

EFI Fuel System Type, Multi-port Injection Style

    See more details

    Key Specs

    MFG. Part #GMLS3014
    BrandModern Classic
    Injection StyleMulti-port
    RPM RangeIdle-8,000
    Material TypeAluminum
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Modern Classic GMLS3014 Details

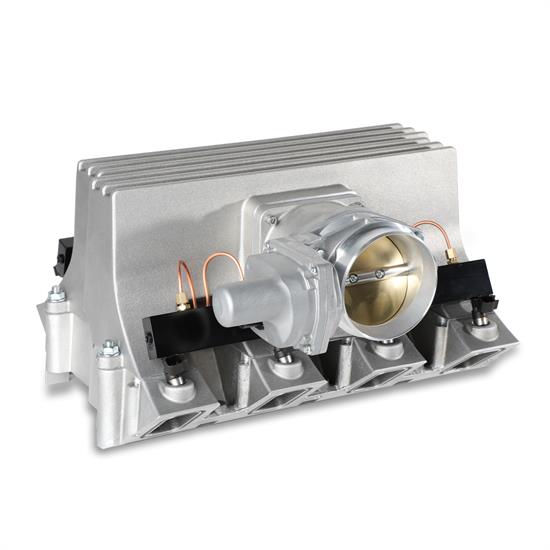

    LS Classic Series ’57 Chevy Fuelie Intake Systems are designed to give your LS engine the look of GM’s iconic original mechanical fuel injection system while using modern technology for ultimate performance.

    The systems are based on a cast aluminum, two-piece manifold, like the originals, which is made in the USA. The intake kits include billet aluminum fuel rails, all mounting hardware, and gaskets.

    The systems utilize GM LS3 OEM fuel injectors and GM four bolt, 92mm, drive-by-wire throttle body (not included) and are compatible with GM and aftermarket ECU’s and harnesses that support both drive-by-wire and speed density tuning. Manifold kits are available to work with Rectangular or Cathedral port LS cylinder heads.

    GMLS3014 ’57 Fuelie Intake Kit- LS Cathedral port Heads

    • Uses stock GM 92mm/four bolt mount throttle body (not included)
    • Uses stock, short LS3/EV6 42lb per hour fuel injectors (not included)
    • Will work with stock engine management systems or Holley Terminator X (or equivalent) systems that support drive-by-wire and speed density tuning and EV6 fuel injector connections
    • Includes black powder coated fuel rails
    • Cast finish two-piece manifold
    • Kit includes adapter plates to work with cathedral port cylinder heads
    • All mounting hardware and gaskets are included
    • Kits are shipped partially assembled and require disassembly for installation
    • Made in the U.S.A.

    For all technical/repair/warranty product questions or needs, please contact LS Classic directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    Charts

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CA Prop 65
    CARB warning

    Modern Classic GMLS3014 Specifications

    KEY SPECS
    MFG. Part #GMLS3014
    BrandModern Classic
    Injection StyleMulti-port
    RPM RangeIdle-8,000
    Material TypeAluminum
    GENERAL
    Fuel System TypeEFI
    FinishNatural
    ColorNatural
    EGRNo
    Cylinder Head ConfigurationCathedral Port
    Throttle Body Bore Size92mm
    Intake Section IncludedComplete
    Plenum MaterialAluminum
    Plenum FinishNatural
    Base FinishNatural
    Base MaterialAluminum
    Throttle Body IncludedNo
    Injectors IncludedNo
    Fuel Rails IncludedYes
    Hardware IncludedYes
    Gaskets IncludedYes
    Runners IncludedYes
    Runners RemovableNo
    Supplemental Bosses Cast-InNo
    Supplemental Bosses MachinedNo
    Sold in QuantityEach
    GTIN Code847087044998
