$1,099.95
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads

LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads

LS3 Chevy LS V8, EFI Fuel System Type, Multi-port Injection Style, One Carburetor Quantity

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads
X
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads
LS Classic Series GMLS3006 14 Inch Classic Intake, LS3 Heads
Zoomed In Image
We estimate this item will ship on or before August 6th.
Part # 491GMLS3006
$1,099.95
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Fuel System Type:
EFI
Injection Style:
Multi-port
Carburetor Quantity:
One
Carburetor Flange Type:
4-Barrel Square Bore
RPM Range:
Idle-8,000
Material Type:
Aluminum
Finish:
Natural
Color:
Natural
EGR:
No
Throttle Body Bore Size:
92mm
Intake Section Included:
Complete
Plenum Material:
Aluminum
Plenum Finish:
Natural
Base Finish:
Natural
Base Material:
Aluminum
Throttle Body Included:
No
Injectors Included:
No
Fuel Rails Included:
Yes
Hardware Included:
Yes
Gaskets Included:
Yes
Runners Included:
Yes
Runners Removable:
No
Supplemental Bosses Cast-In:
Yes
Supplemental Bosses Machined:
No
MFG. Part #:
GMLS3006
Sold in Quantity:
Each
GTIN Code:
847087044943

Info

The LS Classic Series 14” Classic Intake Kit is designed to pay respect to the classic muscle cars and trucks of the 60’s and 70’s while using modern technology for ultimate performance.

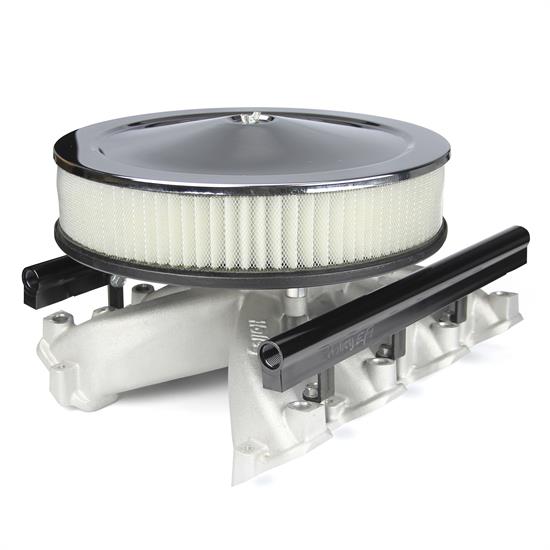

The intake kits include a single plane aluminum intake manifold, billet aluminum fuel rails, 14” chrome round air cleaner, 4150 carb adapter plate, all mounting hardware, and gaskets. The systems utilize GM LS3 OEM fuel injectors and GM four bolt, 92mm, drive-by-wire throttle body (not included) and are compatible with GM and aftermarket ECU’s and harnesses that support both drive-by-wire and speed density tuning. Manifolds are available to work with Rectangular or Cathedral port LS cylinder heads.

GMLS3006 14” Classic Intake Kit- LS 3 Rectangular Port Heads

  • Uses stock GM 92mm/four bolt mount throttle body (not included)
  • The intakes will accept both LS3/EV6 & LS1/EV1 fuel injectors (not included)
  • Will work with stock engine management systems or Holley Terminator X (or equivalent) systems that support drive-by-wire and EV1 or EV6 fuel injector connections
  • Includes 14” round chrome air cleaner assembly, throttle body adapter, and 4150 carb/manifold adapter
  • Includes black anodized fuel rails
  • Cast finish manifold
  • Kit works with LS3 rectangular port cylinder heads
  • All mounting hardware and gaskets are included

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 10 business days for LS Classic to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
