LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads
LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads

LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads

LS3 Chevy LS V8, EFI Fuel System Type, Multi-port Injection Style, Two Carburetor Quantity

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads
LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads
LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads
LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads
X
LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads
LS Classic Series GMLS3003 Tri-Power Style Intake Cathedral Heads
Zoomed In Image
We estimate this item will ship on or before August 13th.
Part # 491GMLS3003
$1,699.95
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Fuel System Type:
EFI
Injection Style:
Multi-port
Carburetor Quantity:
Two
Carburetor Flange Type:
4-Barrel Square Bore
RPM Range:
Idle-8,000
Material Type:
Aluminum
Finish:
Natural
Color:
Natural
EGR:
No
Throttle Body Bore Size:
92mm
Intake Section Included:
Complete
Plenum Material:
Aluminum
Plenum Finish:
Natural
Base Finish:
Natural
Base Material:
Aluminum
Throttle Body Included:
No
Injectors Included:
No
Fuel Rails Included:
Yes
Hardware Included:
Yes
Gaskets Included:
Yes
Runners Included:
Yes
Runners Removable:
No
Supplemental Bosses Cast-In:
No
Supplemental Bosses Machined:
No
MFG. Part #:
GMLS3003
Sold in Quantity:
Each
GTIN Code:
847087044912

Info

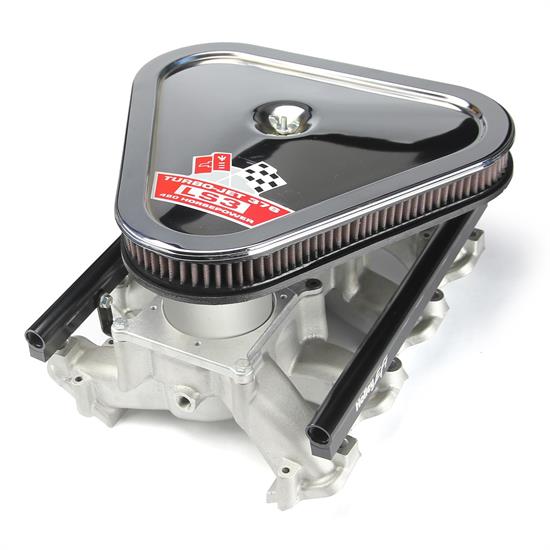

The LS Classic Series Tri-Power Intake Kit is designed to pay tribute to the baddest big block Corvettes of the late 60’s while using modern technology for ultimate performance. The intake kits are built around a modified single plane, dual carb aluminum intake manifold that utilizes dual 92mm, GM LS3, four bolt, throttle bodies and fuel injectors (not included) and accepts our Tri-Power style, chrome, triangular air cleaner. The kit also includes 4150 carb adapter plates, throttle body to air cleaner clamp assemblies, mounting fasteners, and cotton gauze air cleaner. The Tri-Power kit requires the use of Holley Dominator (or equivalent) ECU and harness that supports the dual drive-by-wire throttle bodies. Manifolds are available to work with Rectangular or Cathedral port LS cylinder heads.

GMLS3003 Tri-Power Intake Kit- Cathedral Port Heads

  • Utilizes dual GM 92mm/four bolt mount throttle bodies (not included)
  • The intakes will accept both LS3/EV6 & LS1/EV1 fuel injectors (not included)
  • Must use Holley Dominator system (or equivalent) that supports dual drive-by-wire and EV1 or EV6 fuel injector connections
  • Includes OEM style Tri-Power chrome air cleaner assembly with K&N reusable air filter, throttle body adapters, and 4150 carb/manifold adapters
  • Includes black anodized fuel rails
  • Cast finish manifold
  • Kit works with Cathedral port cylinder heads
  • All mounting hardware and gaskets are included

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 10 business days for LS Classic to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
