$3,499.95
LS Classic Series GMLS3001 '57 Fuelie Style Intake, LS3 Heads
LS Classic Series GMLS3001 '57 Fuelie Style Intake, LS3 Heads

LS Classic Series GMLS3001 '57 Fuelie Style Intake, LS3 Heads

LS3 Chevy LS V8, EFI Fuel System Type, Multi-port Injection Style, Idle-8,000 RPM Range

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
LS Classic Series GMLS3001 '57 Fuelie Style Intake, LS3 Heads
LS Classic Series GMLS3001 '57 Fuelie Style Intake, LS3 Heads
LS Classic Series GMLS3001 '57 Fuelie Style Intake, LS3 Heads
X
LS Classic Series GMLS3001 '57 Fuelie Style Intake, LS3 Heads
Zoomed In Image
We estimate this item will ship on or before August 6th.
Part # 491GMLS3001
$3,499.95
pair
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Fuel System Type:
EFI
Injection Style:
Multi-port
RPM Range:
Idle-8,000
Material Type:
Aluminum
Finish:
Natural
Color:
Natural
EGR:
No
Throttle Body Bore Size:
92mm
Intake Section Included:
Complete
Plenum Material:
Aluminum
Plenum Finish:
Natural
Base Finish:
Natural
Base Material:
Aluminum
Throttle Body Included:
No
Injectors Included:
No
Fuel Rails Included:
Yes
Hardware Included:
Yes
Gaskets Included:
Yes
Runners Included:
Yes
Runners Removable:
No
Supplemental Bosses Cast-In:
No
Supplemental Bosses Machined:
No
MFG. Part #:
GMLS3001
Sold in Quantity:
Each
GTIN Code:
847087044899

Info

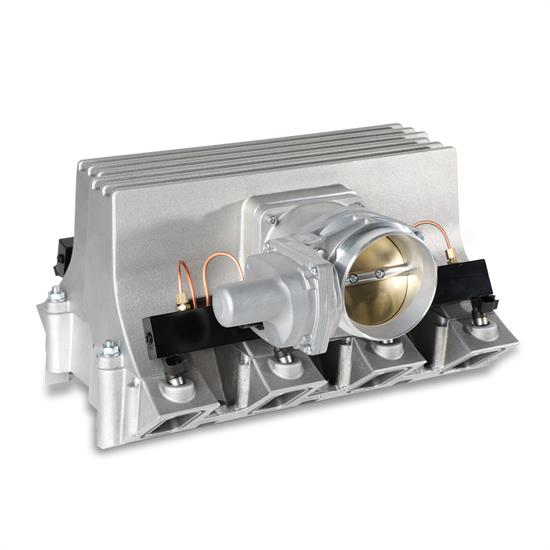

LS Classic Series ’57 Chevy Fuelie Intake Systems are designed to give your LS engine the look of GM’s iconic original mechanical fuel injection system while using modern technology for ultimate performance.

The systems are based on a cast aluminum, two-piece manifold, like the originals, which is made in the USA. The intake kits include billet aluminum fuel rails, all mounting hardware, and gaskets.

The systems utilize GM LS3 OEM fuel injectors and GM four bolt, 92mm, drive-by-wire throttle body (not included) and are compatible with GM and aftermarket ECU’s and harnesses that support both drive-by-wire and speed density tuning. Manifold kits are available to work with Rectangular or Cathedral port LS cylinder heads.

GMLS3001 ’57 Fuelie Intake Kit- LS 3 Rectangular Port Heads

  • Uses stock GM 92mm/four bolt mount throttle body (not included)
  • Uses stock, short LS3/EV6 42lb per hour fuel injectors (not included)
  • Will work with stock engine management systems or Holley Terminator X (or equivalent) systems that support drive-by-wire and speed density tuning and EV6 fuel injector connections
  • Includes black powder coated fuel rails
  • Cast finish two-piece manifold
  • Kit works with LS3 rectangular port cylinder heads
  • All mounting hardware and gaskets are included
  • Kits are shipped partially assembled and require disassembly for installation
  • Made in the U.S.A.

Charts

LS Classic Series 57 Fuelie Intake Manifold Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 10 business days for LS Classic to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
