#474419K-M-030

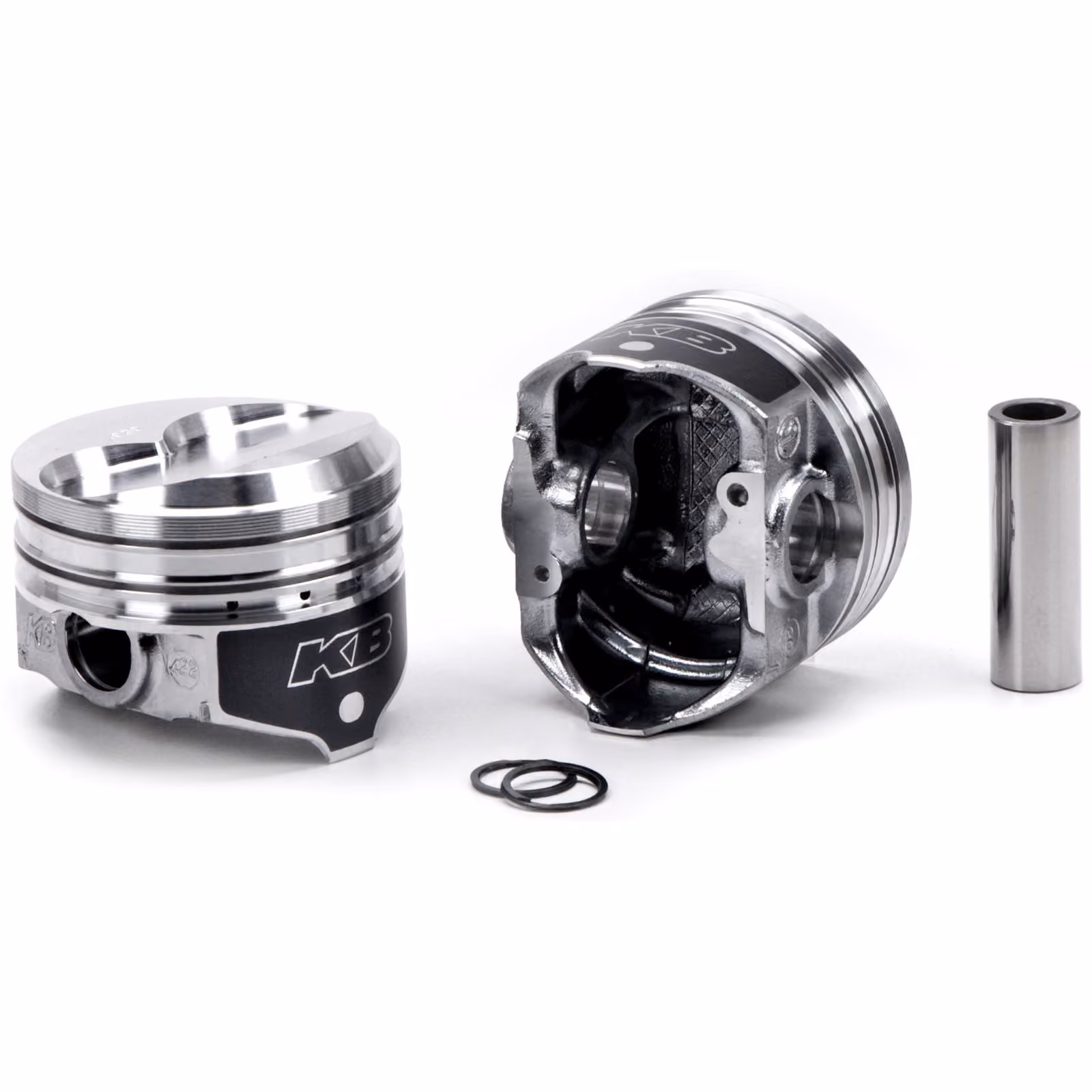

Keith Black KB419KTM.030 Pistons 4.195 in. +28.0 cc Dish
040060
$651.73
/set
Factory Shipped
$804.61
Save $152.88
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Key Specs
| MFG. Part # | KB419KTM.030 |
| Piston Style | Dish Top w/ 2 Valve Reliefs |
| Piston Material | Hypereutectic Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyKeith Black KB419KTM.030 Details
Keith Black KB419KTM.030 Details
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Keith Black KB419KTM.030 Specifications
Keith Black KB419KTM.030 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | KB419KTM.030 |
| Brand | Keith Black |
| Piston Style | Dish Top w/ 2 Valve Reliefs |
| Piston Material | Hypereutectic Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
| GENERAL | |
| Stroke | 3.68" |
| Connecting Rod Length | 5.858" |
| Wrist Pin Diameter | 1" |
| Piston Rings Included | Yes |
| Top Ring Thickness | 5/64" |
| Second Ring Thickness | 5/64" |
| Oil Ring Thickness | 3/16" |
| Compression 58cc = | 9.8 : 1 |
| Engine Displacement | 401 cu. in. |
| Bore Size | 4.195" |
| Compression Height | 1.510" |
| Piston Head Volume | 28 |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
Be the first to ask a question.
Fitment
Fitment
1971-1974 AMC Ambassador
401 AMC V8
1971-1974 AMC Javelin
401 AMC V8
1971-1976 AMC Matador
401 AMC V8
1962-1969 Jeep Gladiator
401 AMC V8
1970-1980 Jeep Wagoneer
401 AMC V8
