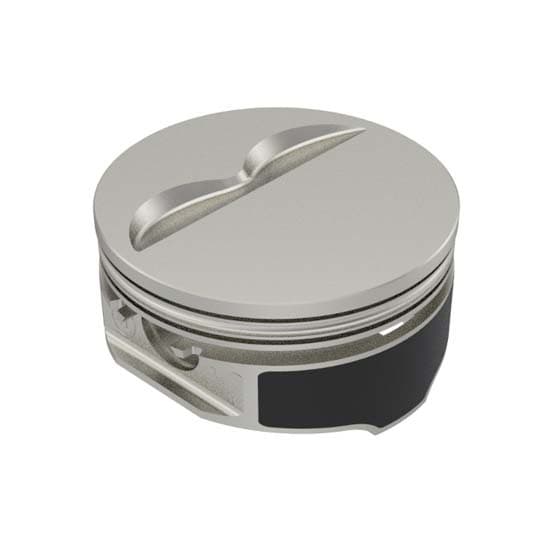

KB Claimer Chevy 383 Hypereutectic Pistons, Flat Top, 6.0 Rod

350 Chevy Small Block V8, 383 Chevy Small Block V8, Hypereutectic Aluminum Piston Material

1 Review | 3 Answered Questions

In Stock

Ships FREE

Select your vehicle to verify fitment.

Select a vehicle to verify fitment.

Select Vehicle

Part # 4749909

Save 26%

$219.99

$299.99

set

Oversize

030 040 060

Call to Order

Add to Buildlist

Click to Login

Compare

Details

Reviews

Q&A

Videos & Articles

Important Messages:

Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Piston Material:

Hypereutectic Aluminum

Piston Style:

Flat Top w/ 2 valve reliefs

Piston Diameter:

Select Oversize to see

Connecting Rod Length:

6.000"

Piston Ring Style:

Stroke:

3.75"

Wrist Pin Diameter:

.9272"

Piston Weight:

527 grams

Compression 58cc =:

11.2 : 1

Compression 64cc =:

10.1 : 1

Compression 76cc =:

9.8 : 1

Sold in Quantity:

Set

MFG. Part #:

Select Oversize to see

GTIN Code:

Select Oversize to see

Info

These Keith Black Claimer Pistons (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 383 c.i. (4.000" bore x 3.75" stroke). Does not include piston ring set. Use Ring Style C.

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=11.2, 64cc=10.1, 76cc=9.8
Piston/Pin Weight: 527 g
Rod Length: 6", Ring Style: C

Specs

Comp Height 5.7" Rod - 1.433
Comp Height 6.0" Rod - 1.13
Pin Diameter - 0.9272

Some parts are not legal for use in California or other states with similar laws/regulations
