#474179

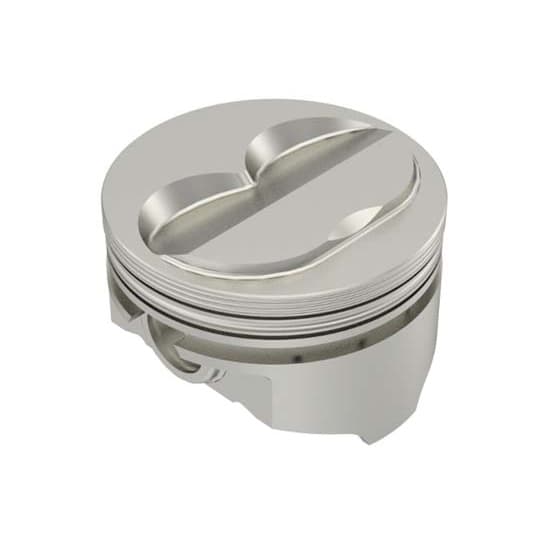

KB Chevy 305 Hypereutectic Pistons, .150 Dome, 6.0 Rod
Starting from
$432.99
/set
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | Select Size |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Keith Black Hypereutectic pistons are favored for their improved power and reduced scuffing. The unique design & manufacturing processes combine to produce a rigid piston, which will rock less in the bore improving ring seal. These T-5 heat treated pistons also offer reduced thermal expansion, which allows you to run tighter clearances and allows the piston rings to seal better and minimize blow-by.
- 390 Hypereutectic alloy
- Fully machined crowns and valve reliefs
- Drilled oil drain backs
- Full floating wrist pins
- Triple wound spiral locks
- Reflective alloy allows 2% power increase
- Quench dome technology minimizes deterioration
- Zero deck quench designs
- Lightweight wrist pins
For S/B Chevy 305 c.i. (3.736" bore x 3.48" stroke).
Item Details
C/R 58cc=11.2, 64cc=10.3, 76cc=8.9Piston/Pin Weight: 582 g
Rod Length: 6.0", Ring Style: C
Charts
474-179 Instructions (PDF)
Ring Style Chart (GIF)
Specs
- Comp Height 5.7" Rod - 1.561
- Comp Height 6.0" Rod - 1.261
- Pin Diameter - 0.9272
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Size to see |
| Brand | Keith Black |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
| GENERAL | |
| Piston Diameter | Select Size to see |
| Dome Height | .150" |
| Stroke | 3.480" |
| Connecting Rod Length | 6.000" |
| Piston Weight | 437 grams |
| Piston Ring Style | C |
| Wrist Pin Diameter | 0.9272" |
| Wrist Pin Weight | 145 grams |
| Top Ring Thickness | 1/16" |
| Second Ring Thickness | 1/16" |
| Oil Ring Thickness | 3/16" |
| Compression 58cc = | 11.2 : 1 |
| Compression 64cc = | 10.3 : 1 |
| Compression 76cc = | 8.9 : 1 |
| GTIN Code | Select Size to see |
| Sold in Quantity | Set |
