#45535004

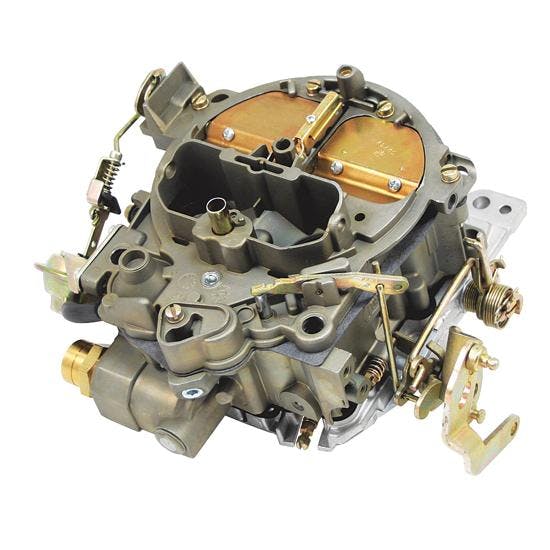

Jet Performance 35004 Oval Track Tuned Quadrajet
- These Jet Performance Q-jets are extensively reworked by removing the choke hardware
- Has the main well size increased and a new .149 needle and seat
- Engineered to work best with 355-406 small blocks with a single plane intake, headers, 11.5:1 and ported heads
$499.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
4-Barrel Carburetor Barrels, Gasoline Fuel Type, Gold
- These Jet Performance Q-jets are extensively reworked by removing the choke hardware
- Has the main well size increased and a new .149 needle and seat
- Engineered to work best with 355-406 small blocks with a single plane intake, headers, 11.5:1 and ported heads
- Ideal for a cam with at least 250 degrees of duration at .050" and .525" lift
- Has a 750 CFM flow rate and a single fuel inlet
Key Specs
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 700-799 CFM |
| CFM | 750 CFM |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyJet Performance 35004 Details
Jet Performance 35004 Details
If your class allows you to run a Quadrajet or you are just sick of working on that other brand, check this out. These Jet Performance Q-jets are extensively reworked by removing the choke hardware, increasing the main well size, enriching the fuel curve and adding a .149 needle and seat. They are rated at 750 cfm and work best with 355-406 small blocks with a single plane intake, headers, 11.5:1 and ported heads. They like a cam with at least 250 degrees of duration at .050" and .525" lift.
Charts
455-35004 Instructions (PDF)
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Jet Performance 35004 Specifications
Jet Performance 35004 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 35004 |
| Brand | Jet Performance |
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 700-799 CFM |
| CFM | 750 CFM |
| Carburetor Flange Type | 4-Barrel Spread Bore |
| Finish | Dichromate |
| Material Type | Aluminum |
| Color | Gold |
| Secondary Type | Air Valve |
| Fuel Inlet Type | Single |
| Gasket(s) Included | No |
| New or Remanufactured | Remanufactured |
| Throttle Linkage Type | Universal |
| Supercharged Application | No |
| GENERAL | |
| GTIN Code | 064330040907 |
| Sold in Quantity | Each |
