Product Summary

Universal Fit, 25" Overall Length, 9" Overall Height

  • Features a seamless rotomolded cross-linked polyethylene outer shell
  • Comes with the fuel level sending unit assembly installed
  • Includes a two-inch deep sump in rear for better fuel pickup
  • There are a total of two AN-8 fast flow outlet fittings in the sump
  • All JAZ polyethylene fuel cells exceed SFI Spec. 28.1 and are accepted by most sanctioning organizations
See more details

Key Specs

MFG. Part #292-016-01
BrandJaz Products
Material TypePolyethylene
See more specs

Need To Know

Quick and Easy Returns

Return Policy

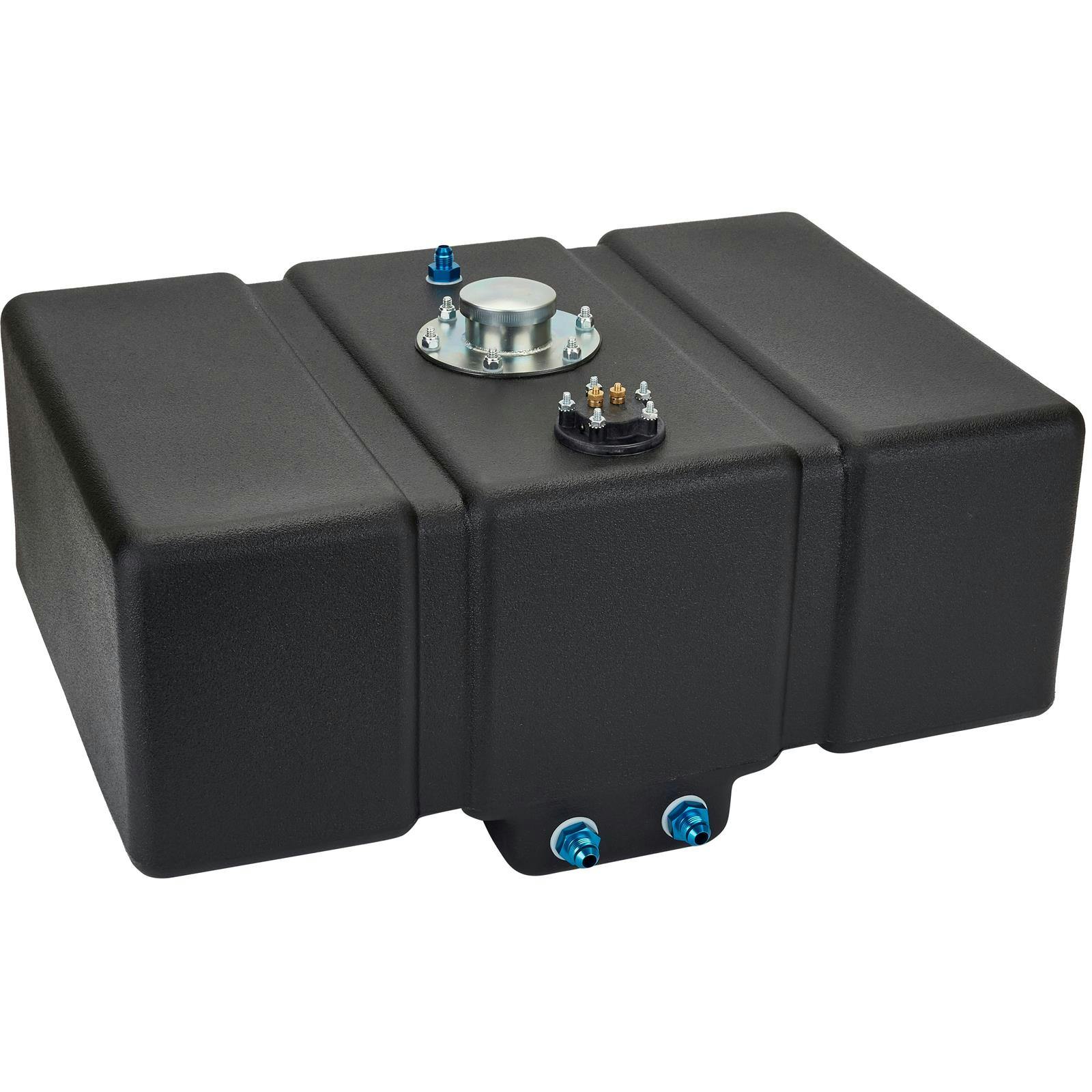

Jaz Products 292-016-01 Details

JAZ Products maintains its own factory, equipment, and molds, producing the highest quality fuel cells, rotationally molded in seamless cross-linked polyethylene. JAZ Products only uses safety foam in all their fuel cells. This foam is far superior and has a 10 times longer service life than that of other non-fuel approved foams on the market. All JAZ polyethylene fuel cells exceed SFI Spec. 28.1 and are accepted by most sanctioning organizations.

  • Seamless rotomolded cross-linked polyethylene outer shell
  • Comes with safety foam
  • Fuel level sending unit assembly installed
  • Low pro drag fill 1-3/4" high
  • 0-90 ohm sending unit
  • Two-inch deep sump in rear for better fuel pickup
  • Two AN-8 fast flow outlet fittings in the sump
  • One AN-6 vent fitting
  • 360° mounting strap recesses
  • 25" L x 17" W x 9" D

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Jaz Products 292-016-01 Specifications

KEY SPECS
MFG. Part #292-016-01
BrandJaz Products
Material TypePolyethylene
GENERAL
Overall Length25"
Overall Height9"
Overall Width17"
Overall Length Range25.00" to 25.99"
Overall Height Range9.00" to 9.99"
Overall Width Range17.00" to 17.99"
Safety Foam IncludedYes
Sending Unit IncludedYes
Ohm Range0-90 ohm
Sold in QuantityEach
NotesSFI 28.1 rated.
