#474729-030

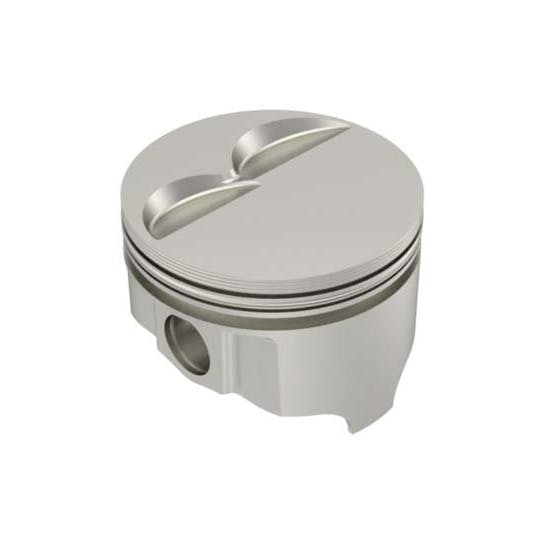

Icon IC729.030 Forged SBF Ford 351W Flat Top Pistons 030 Over
$834.70
/set
In Stock
$1,030.49
Save $195.79
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Key Specs
| MFG. Part # | IC729.030 |
| Piston Style | Flat Top w/ 2 valve reliefs |
| Piston Material | Forged Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyIcon Pistons IC729.030 Details
Icon Pistons IC729.030 Details
Formerly KB Pistons. Starting with 2618 alloy heat treated to high-strength T-6 specifications gives you the best value for the money. Exclusive V-Rib adds strength without adding weight but allows maximum cooling.
- 4.00" bore x 3.50" stroke
- 5.956" rod length
- .912" pin diameter
- Use Ring Style C (1/16", 1/16", 3/16")
- High ductility 2618 alloy
- Dual forced pin oiling on most applications
- Lateral gas porting on higher compression ratios
- Fully machined with deep valve pockets
- Second land accumulator grooves
- Top land mini groove technology
- Diamond finished skirts
- Triple wound spiral locks
Item Details
C/R 64cc=10.5, 69cc=9.9Piston/Pin Weight: 647 g
Rod Length: 5.956"
Flat Top
Charts
474-729 Instructions (PDF)
Ring Style Chart (GIF)
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Icon Pistons IC729.030 Specifications
Icon Pistons IC729.030 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | IC729.030 |
| Brand | Icon Pistons |
| Piston Style | Flat Top w/ 2 valve reliefs |
| Piston Material | Forged Aluminum |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Press-Fit or Floating |
| GENERAL | |
| Piston Diameter | 4.030" |
| Stroke | 3.500" |
| Connecting Rod Length | 5.956" |
| Piston Weight | 516 grams |
| Piston Ring Style | C |
| Wrist Pin Diameter | 0.9122" |
| Wrist Pin Weight | 131 grams |
| Top Ring Thickness | 1/16" |
| Second Ring Thickness | 1/16" |
| Oil Ring Thickness | 3/16" |
| Compression 58cc = | 11.3 : 1 |
| Compression 64cc = | 10.5 : 1 |
| GTIN Code | 800745093066 |
| Sold in Quantity | Set |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
2 Questions • 2 Answers
what is the rist pin hieght?
by robc
• 12 years ago
1 answer
View Answer
which piston part number/brand is compatible with the 351w/396cu stroker cast steel crank
by Tinbender
• 12 years ago
1 answer
View Answer
2 of 2 questions shown
Fitment
Fitment
1988-1989 DeTomaso Pantera
Ford 351W
1978-1996 Ford Bronco
Ford 351W
1969-1974 Ford Country Sedan
Ford 351W
1969-1974 Ford Country Squire
Ford 351W
1969-1972 Ford Custom
Ford 351W
1969-1977 Ford Custom 500
Ford 351W
1975-1983 Ford E-100 Econoline
Ford 351W
1975-1983 Ford E-100 Econoline Club Wagon
Ford 351W
1975-1996 Ford E-150 Econoline
Ford 351W
1975-1996 Ford E-150 Econoline Club Wagon
Ford 351W
1975-1996 Ford E-250 Econoline
Ford 351W
1975-1991 Ford E-250 Econoline Club Wagon
Ford 351W
1975-1996 Ford E-350 Econoline
Ford 351W
1977-1996 Ford E-350 Econoline Club Wagon
Ford 351W
1996 Ford Econoline Super Duty
Ford 351W
1975-1976 Ford Elite
Ford 351W
1978-1979 Ford F-100
Ford 351W
1981 Ford F-100
Ford 351W
1978-1996 Ford F-150
Ford 351W
1978-1997 Ford F-250
Ford 351W
1978-1997 Ford F-350
Ford 351W
1969-1970 Ford Fairlane
Ford 351W
1969-1970 Ford Falcon
Ford 351W
1969-1974 Ford Galaxie 500
Ford 351W
1972-1976 Ford Gran Torino
Ford 351W
1975-1977 Ford Granada
Ford 351W
1969-1986 Ford LTD
Ford 351W
1987-1991 Ford LTD Crown Victoria
Ford 351W
1977-1979 Ford LTD II
Ford 351W
1969-1973 Ford Mustang
Ford 351W
1995 Ford Mustang
Ford 351W
1969-1974 Ford Ranch Wagon
Ford 351W
1969-1979 Ford Ranchero
Ford 351W
1977-1979 Ford Thunderbird
Ford 351W
1969-1976 Ford Torino
Ford 351W
