Icon Chevy 400 Forged Pistons, Dish, 6.0 Rod
400 Chevy Small Block V8, Forged Aluminum Piston Material, Dish Piston Style, 3.75" Stroke
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
We have been selling Keith Black pistons for years and now offer their premium new generation forged pistons. Starting with 2618 alloy heat treated to high-strength T-6 specifications, these give you the best value for the money. Exclusive V-ribs add strength without adding weight and allow maximum cooling capacity.
For Chevy 400 c.i. (4.125" bore x 3.75" stroke). Use Style C piston rings (1/16", 1/16", 3/16").
- High ductility 2618 alloy
- Dual forced pin oiling on most applications
- Lateral gas porting on higher compression ratios
- Fully machined with deep valve pockets
- Second land accumulator grooves
- Top land mini groove technology
- Diamond finished skirts
- Triple wound spiral locks

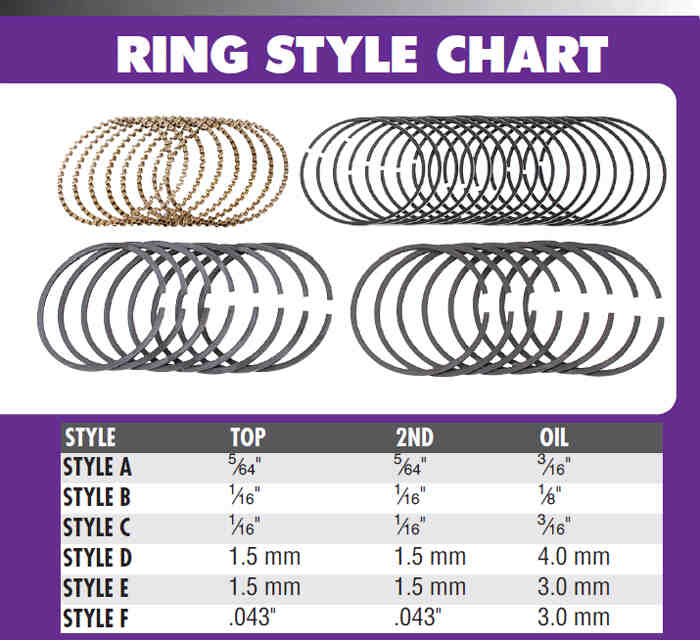

Ring Style Chart (GIF)
474-757 Instructions (PDF)
Item DetailsWeight: 463 g.
C/R 64cc: 9.5
C/R 76cc: 8.5
Rod Length: 6.0"
- Pin Diameter: 0.9272"
