$187 Off

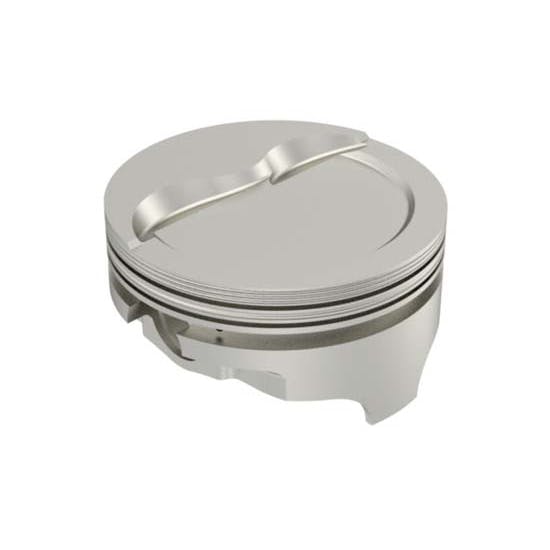

Icon IC734.030 Forged Chevy 383 Dished Pistons 6.0 Rod .030

$187 Off

#474734-030

Icon IC734.030 Forged Chevy 383 Dished Pistons 6.0 Rod .030

Name: Icon IC734.030 Forged Chevy 383 Dished Pistons 6.0 Rod .030
Brand: Icon Pistons
SKU: 474734-030
Price: 796.76 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

1 Review

Ask a Question

Size:

.030 Inch

$796.76

/set

In Stock

$983.66

Save $186.90

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Dish Piston Style, Forged Aluminum Piston Material

See more details

Key Specs

MFG. Part #	IC734.030
Piston Style	Dish
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Icon Pistons IC734.030 Details

Formerly KB Forged Pistons. Starting with 2618 alloy heat treated to high strength T-6 specifications, these give you the best value for your money. Exclusive V-rib adds strength without adding weight but allows maximum cooling.

For Chevy 383 c.i. V8 (4.000" bore x 3.75" stroke). Use Style C rings (1/16", 1/16", 3/16").

High ductility 2618 alloy
Dual forced pin oiling on most applications
Lateral gas porting on higher compression ratios
Fully machined with deep valve pockets
Second land accumulator grooves
Top land mini groove technology
Diamond finished skirts
Triple wound spiral locks
Ring style C application

Item Details

Weight: 422 g
C/R 64cc: 9.6, 76cc: 8.6
Rod Length: 6.0"

Charts

474-734 Instructions (PDF)

Ring Style Chart (GIF)

Specs

Comp Height 5.7" Rod - 1.433
Comp Height 6.0" Rod - 1.13
Pin Diameter - 0.9272
Step Dish Head Tye with Effective Head Volume 18.6cc

Guides & Documents

Pistons Installation Instructions (474734)

Pistons Technical Information (474734)

Installation Instructions (Icon Pistons)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Icon Pistons IC734.030 Specifications

KEY SPECS
MFG. Part #	IC734.030
Brand	Icon Pistons
Piston Style	Dish
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

GENERAL
Piston Diameter	4.030"
Stroke	3.750"
Connecting Rod Length	6.000"
Piston Weight	422 grams
Piston Ring Style	C
Wrist Pin Diameter	0.9272"
Wrist Pin Weight	132 grams
Top Ring Thickness	1/16"
Second Ring Thickness	1/16"
Oil Ring Thickness	3/16"
Compression 64cc =	9.6 : 1
Compression 76cc =	8.6 : 1
GTIN Code	800745099877
Sold in Quantity	Set
Compression Height	1.125"

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Beautiful!

5.0

4 years ago

Camaro Matt

Davenport iowa

Verified

They worked amazing! And very cost friendly for a forged set!

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

Be the first to ask a question.
