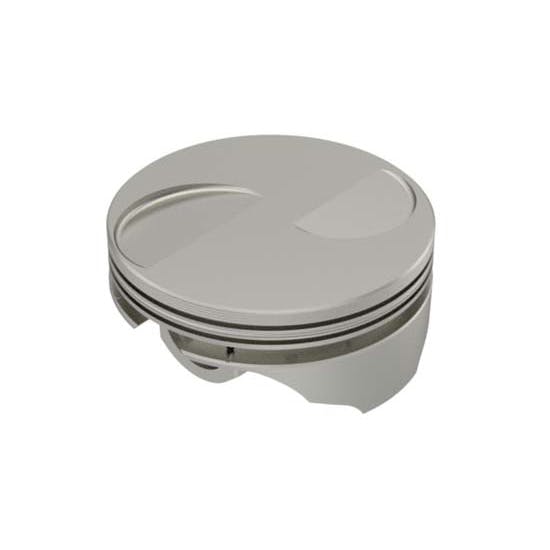

Icon 2.3 Ford Pistons, Flat Top, 5.700 Rod

$106 Off

Icon Pistons

#474946

Icon 2.3 Ford Pistons, Flat Top, 5.700 Rod

Name: Icon 2.3 Ford Pistons, Flat Top, 5.700 Rod
Brand: Icon Pistons
SKU: 474946
Rating: 5 (4 reviews)

4 Reviews

3 Questions

Features top land mini groove technology
They are fully machined with deep valve pockets
These 2.3 Ford pistons are super lightweight and forged from 2618 alloy

Oversize:

Select a oversize

$453.84

/set

In Stock

$560.30

Save $106.46

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Flat Top w/ 2 valve reliefs Piston Style, 3.126" Stroke

Features top land mini groove technology
They are fully machined with deep valve pockets
These 2.3 Ford pistons are super lightweight and forged from 2618 alloy
Spacer rings are included in short compression heights that intersect the wrist pin bore
Available in .030" and .040" oversizes (stock 3.78" bore x 3.126" stroke) to custom fit your application

See more details

Key Specs

MFG. Part #	Select Oversize
Piston Style	Flat Top w/ 2 valve reliefs
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

If you are running the 2.3 Ford, these Icon forged pistons are just the ticket! Super lightweight and forged from 2618 alloy, they are the most bang for the buck youll find.

High ductility 2618 alloy
Dual forced pin oiling on most applications
Lateral gas porting on higher compression ratios
Fully machined with deep valve pockets
Second land accumulator grooves
Top land mini groove technology
Diamond finished skirts
Triple wound spiral locks
Spacer rings included in short compression heights that intersect the wrist pin bore
Set of 4 Pistons

Available in .030" and .040" oversizes (stock 3.78" bore x 3.126" stroke).

Item Details

Weight: 401g
Dome: Flat
60cc: 9.3, 64cc: 8.8
Rod Length: 5.700
Pin Diameter: .927
Ring Style: C

Charts

Ring Style Chart (GIF)

Guides & Documents

Pistons Technical Information (474946)

Installation Instructions (Icon Pistons)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Specifications

KEY SPECS
MFG. Part #	Select Oversize to see
Brand	Icon Pistons
Piston Style	Flat Top w/ 2 valve reliefs
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

GENERAL
Piston Diameter	Select Oversize to see
Stroke	3.126"
Connecting Rod Length	5.700"
Piston Weight	401 grams
Piston Ring Style	C
Wrist Pin Diameter	0.9272"
Wrist Pin Weight	85 grams
Top Ring Thickness	1/16"
Second Ring Thickness	1/16"
Oil Ring Thickness	3/16"
Compression 64cc =	8.8 : 1
GTIN Code	Select Oversize to see
Sold in Quantity	Set

Ratings & Reviews

4 Reviews

Overall Assessment

Customers highlight the excellent quality and affordability of our pistons, specifically noting their seamless performance in Ford 2.3 MMSA RaceCar and MMSA Mustang dirt track engine. They find our product exceptionally usable, made from high-quality material enhancing its safety and efficiency. Compared to competitors, reviewers recommend ours due to its superior features, implying its leading position in the market.

Write A Review

4 reviews

Filter by Ratings

Sort Reviews

I'm looking at buying these again

5.0

7 months ago

Ace

Rocky Mount, NC

Verified

These pistons are in my motor now I'm running and it's running away from most, going to buy another set for my spare motor

Would Recommend

Quality

5.0

8 months ago

Turbo 2.3

Virginia

Verified

Very Nice forged pistons, weights and measurements were good.

Would Recommend

Great pistons for the price

5.0

4 years ago

smorgan

Waterloo SC

Verified

Running in a ford 2.3 MMSA RaceCar

Would Recommend

Good quality pistons for reasonable price

5.0

6 years ago

Scott #B9

Waterloo SC

Verified

I run these in my MMSA Mustang dirt track engine

Would Recommend

Showing 4 of 4 reviews

Questions & Answers

3 Questions • 3 Answers

Sort Questions

what connecting rods are these supposed to be used with?

by Nonya

• 2 years ago

1 answer

View Answer

Are these avalible in standard size? It keeps makeing me select an oversize mine is standard

by Zen

• 7 years ago

1 answer

View Answer

Are these forged pistons compatible with a turbo charged application

by Morgan

• 9 years ago

1 answer

View Answer

3 of 3 questions shown
