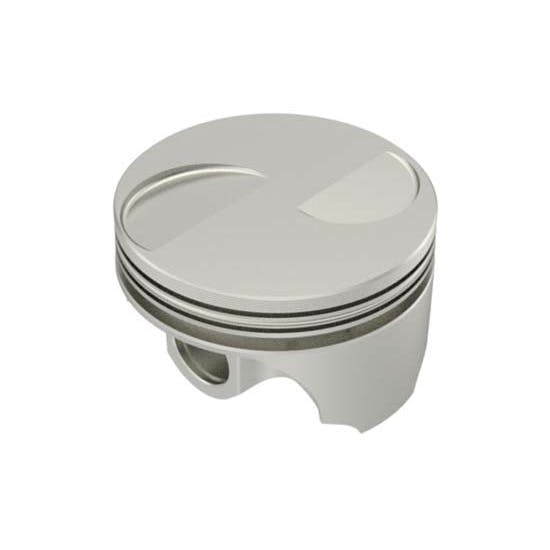

Icon 2.3 Ford Pistons, Flat Top, 5.205 Rod

$106 Off

Icon Pistons

#474939

Icon 2.3 Ford Pistons, Flat Top, 5.205 Rod

Name: Icon 2.3 Ford Pistons, Flat Top, 5.205 Rod
Brand: Icon Pistons
SKU: 474939
Rating: 5 (2 reviews)

2 Reviews

7 Questions

It is fully machined with deep valve pockets
Has dual forced pin oiling on most applications
Features lateral gas porting on higher compression ratios

Oversize:

Select a oversize

$453.84

/set

In Stock

$560.30

Save $106.46

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Flat Top w/ 2 valve reliefs Piston Style, 3.126" Stroke

It is fully machined with deep valve pockets
Has dual forced pin oiling on most applications
Features lateral gas porting on higher compression ratios
Made entirely from high ductility 2618 alloy and weighs only 388 grams
Includes second land accumulator grooves and op land mini groove technology

See more details

Key Specs

MFG. Part #	Select Oversize
Piston Style	Flat Top w/ 2 valve reliefs
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

If you are running the 2.3 Ford, these Icon forged pistons are just the ticket! Super lightweight and forged from 2618 alloy, they are the most bang for the buck youll find.

Available in .030" and .040" oversizes (stock 3.78" bore x 3.126" stroke). Use ring Style C.

High ductility 2618 alloy
Dual forced pin oiling on most applications
Lateral gas porting on higher compression ratios
Fully machined with deep valve pockets
Second land accumulator grooves
Top land mini groove technology
Diamond finished skirts
Triple wound spiral locks
Spacer rings included in short compression heights that intersect the wrist pin bore

Item Details

Weight: 473g
Dome: Flat
60cc: 9.3, 64cc: 8.8
Rod Length: 5.205
Pin Diameter: .912
Ring Style: C

Charts

Ring Style Chart (GIF)

Guides & Documents

Pistons Technical Information (474939)

Installation Instructions (Icon Pistons)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Specifications

KEY SPECS
MFG. Part #	Select Oversize to see
Brand	Icon Pistons
Piston Style	Flat Top w/ 2 valve reliefs
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

GENERAL
Piston Diameter	Select Oversize to see
Stroke	3.126"
Connecting Rod Length	5.200"
Piston Weight	388 grams
Piston Ring Style	C
Wrist Pin Diameter	0.9120"
Wrist Pin Weight	85 grams
Top Ring Thickness	1/16"
Second Ring Thickness	1/16"
Oil Ring Thickness	3/16"
Compression 64cc =	8.9 : 1
GTIN Code	Select Oversize to see
Sold in Quantity	Set

Ratings & Reviews

2 Reviews

Overall Assessment

Customers commend our product for its exceptional quality and practical features. Specifically, the solid material quality of the pistons and their anti-wear skirts are highly praised, setting our product apart from competitors. The incorporation of coil type c clips and ported holes in the piston for superior ring sealing is also acknowledged as unique. As per customer recommendations, our piston set stands out in the market and is undeniably a trusted choice for quality and performance.

Write A Review

2 reviews

Filter by Ratings

Sort Reviews

I would buy from speedway again

5.0

4 years ago

Ford forever boosted 2.3 Fird

Orange City Florida

Verified

Thank you fast shipping and great product

Would Recommend

Great product high quality

5.0

5 years ago

Mod4

Minnesota

Verified

Great set of pistons anti wear skirts nice coil type c clips, ported holes in piston for better ring sealing would definetly recommend this piston

Would Recommend

Showing 2 of 2 reviews

Questions & Answers

7 Questions • 7 Answers

Sort Questions

Is these pistons cheap forging? Stock turbo pistons can handle more than 8# of boost.

by Edward

• 8 years ago

1 answer

View Answer

Do you guys have .060" oversize or bigger? If not those, any other piston that could fit the Ford 2.3 74 .060" oversize?

by Duilio

• 9 years ago

1 answer

View Answer

Can these pistons handle a fair amount of boost?

by Michael

• 11 years ago

1 answer

View Answer

CAN THESE PISTONS BE USED WITH OTHER STOCK INTERNALS

by CPC

• 11 years ago

1 answer

View Answer

Does the Ford 2.3L pistons come in a set of 4 for 379 or is that one piston?

by Xr4ti

• 13 years ago

1 answer

View Answer

what rings fit these pistons?

• 15 years ago

1 answer

View Answer

Are the icon piston avaiable in std bore?

• 15 years ago

1 answer

View Answer

7 of 7 questions shown
