Add to Cart
$59.99
$54.99
IMCA Modified Standard 4-Bar 5/8 Inch Rod End Kit
IMCA Modified Standard 4-Bar 5/8 Inch Rod End Kit

IMCA Modified Standard 4-Bar 5/8 Inch Rod End Kit

Modified, RH/LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, 5/8"-18 Thread Pitch

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
IMCA Modified Standard 4-Bar 5/8 Inch Rod End Kit
IMCA Modified Standard 4-Bar 5/8 Inch Rod End Kit
IMCA Modified Standard 4-Bar 5/8 Inch Rod End Kit
X
IMCA Modified Standard 4-Bar 5/8 Inch Rod End Kit
Zoomed In Image
Part # 9108593
Save 8%
$54.99
$59.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Standard rod ends are a general purpose, two-piece design
  • Rod ends feature a carbon steel body and a hardened ball with metal to metal contact
  • Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications
  • Premium steel jam nuts to ensure a long life and durability
  • Includes (4) 5/8-18 LH Male rod ends, (4) 5/8-18 RH Male rod ends, (4) 5/8-18 RH jam nuts and (4) 5/8-18 LH jam nuts

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Thread Type:
RH/LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
5/8"-18
Material Type:
Steel
Hole Diameter:
0.625"
Rod End Style:
Metal-to-metal
Rod End Construction:
2-piece
Grease Fitting:
No
Finish:
Zinc Plated
Jam Nut Included:
Yes
MFG. Part #:
9108593
Sold in Quantity:
Set

Info

For some - you need the hardware and bits and pieces to build out your own custom designs. We listened to your feedback and are happy to offer this 4-Bar Rod End Kit for you custom suspension gurus out there dreaming up the next big thing in suspension design and technology!

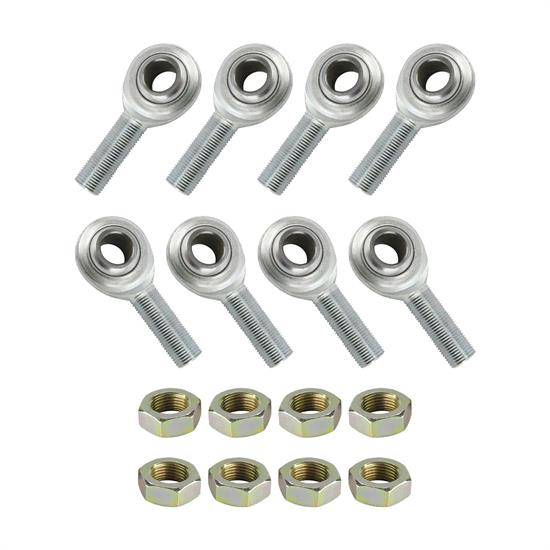

Kit Contains:

  • (4) Standard Steel Heim Joint Rod Ends, 5/8-18 LH Male
  • (4) Standard Steel Heim Joint Rod Ends, 5/8-18 RH Male
  • (4) Steel Jam Nut, 5/8-18 LH
  • (4) Steel Jam Nut, 5/8-18 RH

Standard Steel Heim Joint Rod Ends, 5/8-18 Thread

These standard rod ends are a general-purpose, two-piece design. They have a carbon steel body and a hardened ball with metal to metal contact.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

IMCA Approved.

Steel Jam Nuts, 5/8-18 Thread

Raw steel 5/8"-18 thread jam nut

IMCA Approved

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Standard Steel Heim Joint Rod Ends, 5/8-18 LH Male
    Qty x 4
  • Standard Steel Heim Joint Rod Ends, 5/8-18 RH Male
    Qty x 4
  • Steel Jam Nut, 5/8-18 RH
    Qty x 4
  • Steel Jam Nut, 5/8-18 LH
    Qty x 4
