IMCA Modified Premium 4-Bar Pro-1 5/8 Inch Rod End Kit
Modified, RH/LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, 5/8"-18 Thread Pitch
- Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends
- Feature a chromoly steel body and are black oxide coated to resist corrosion
- Heat treated, precision ground ball without a race (metal to metal contact)
- Pro-1 ends will withstand a greater static load than "Standard" or "Precision" rod ends

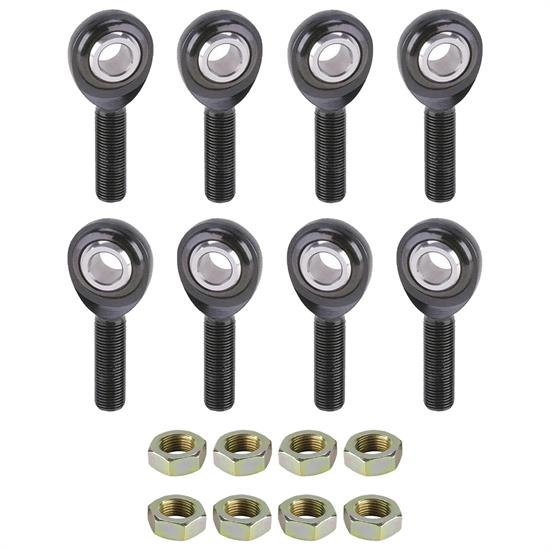

- Includes (4) Pro-1 5/8-18 LH Male rod ends, (4) Pro-1 5/8-18 RH Male rod ends, (4) 5/8-18 RH steel jam nuts and (4) 5/8-18 LH steel jam nuts
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
For some - you need the hardware and bits and pieces to build out your own custom designs. We listened to your feedback and are happy to offer this 4-Bar Rod End Kit for you custom suspension gurus out there dreaming up the next big thing in suspension design and technology!
- (4) Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 LH Male
- (4) Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 RH Male
- (4) Steel Jam Nut, 5/8-18 LH
- (4) Steel Jam Nut, 5/8-18 RH

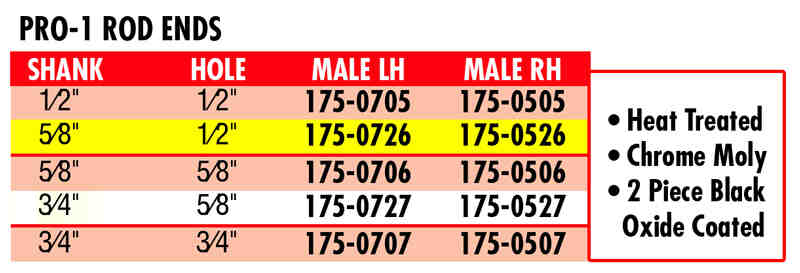

Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 Thread
These Pro-1 rod ends are general-purpose, 2-piece, heavy-duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat-treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Steel Jam Nuts, 5/8-18 Thread
Raw steel 5/8"-18 thread jam nut
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 LH MalePart # 1750706Qty x 4
Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 RH MalePart # 1750506Qty x 4
Steel Jam Nut, 5/8-18 RHPart # 1750246Qty x 4
Steel Jam Nut, 5/8-18 LHPart # 1750446Qty x 4
