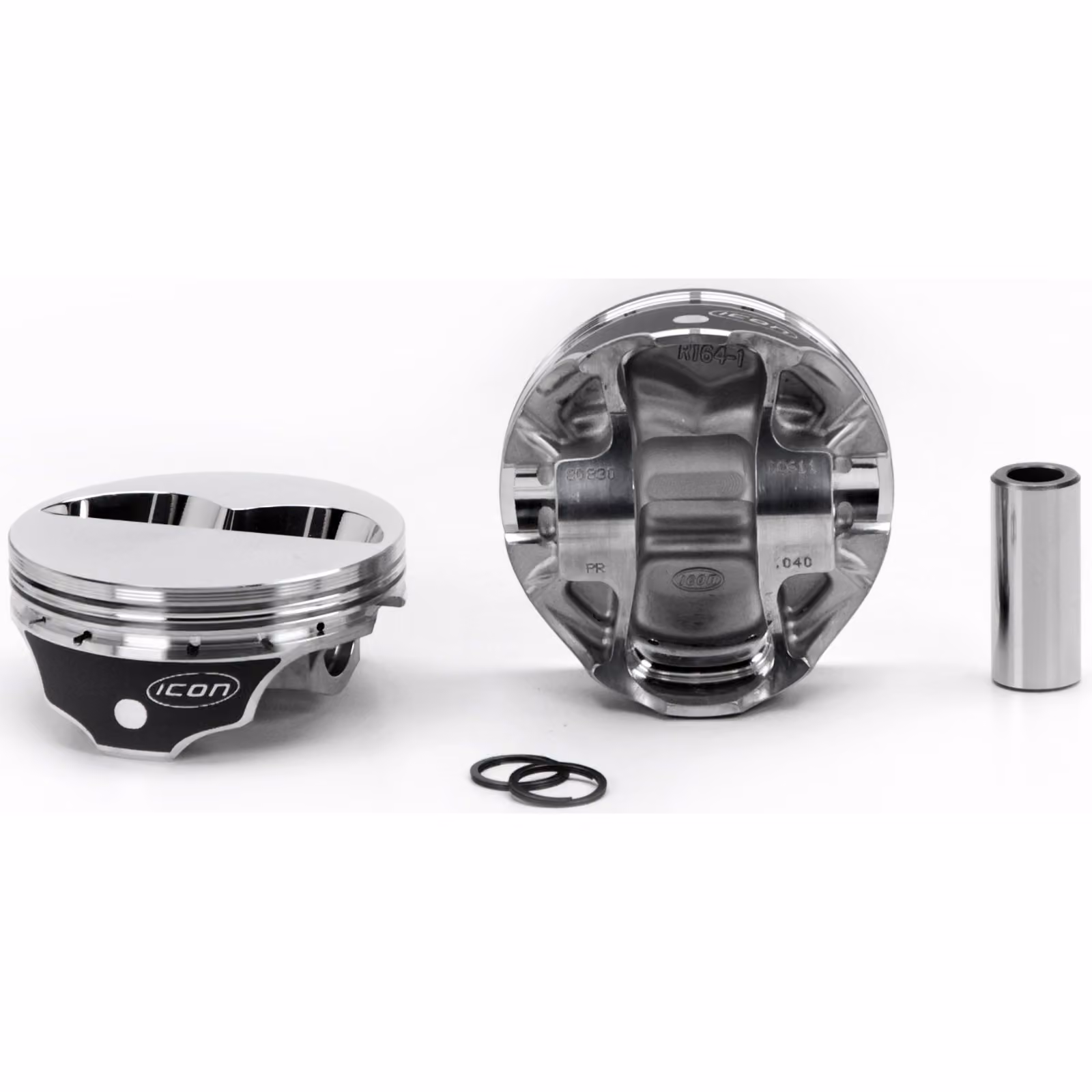

ICON IC608.030 Pistons 4.155 in. -11 cc Dome

Name: ICON IC608.030 Pistons 4.155 in. -11 cc Dome
Brand: Icon Pistons
SKU: 474608-030
Price: 958.36 USD
Availability: InStock

Write a Review

Ask a Question

Oversize:

030

020040 060 Standard

$958.36

/set

Factory Shipped

$1,183.16

Save $224.80

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Key Specs

MFG. Part #	IC608.030
Piston Style	Dome Top w/ 2 Valve Reliefs
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Icon Pistons IC608.030 Details

Guides & Documents

Installation Instructions (Icon Pistons)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Icon Pistons IC608.030 Specifications

KEY SPECS
MFG. Part #	IC608.030
Brand	Icon Pistons
Piston Style	Dome Top w/ 2 Valve Reliefs
Piston Material	Forged Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Press-Fit or Floating

GENERAL
Dome Height	0.4"
Stroke	3.625"
Connecting Rod Length	6.000"
Wrist Pin Diameter	0.927"
Piston Rings Included	No
Compression 64cc =	14.0 : 1
Engine Displacement	388 cu. in.
Bore Size	4.155"
Compression Height	1.187"
Piston Head Volume	-11
