Product Summary

LS1, LS2, LS6, EFI Fuel System Type, Aluminum, Anodized

    Key Specs

    MFG. Part #820032-1
    BrandHolley Sniper
    Intake Manifold TypeHi-Ram
    RPM Range2,200-6,800
    Material TypeAluminum

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Holley Sniper 820032-1 Details

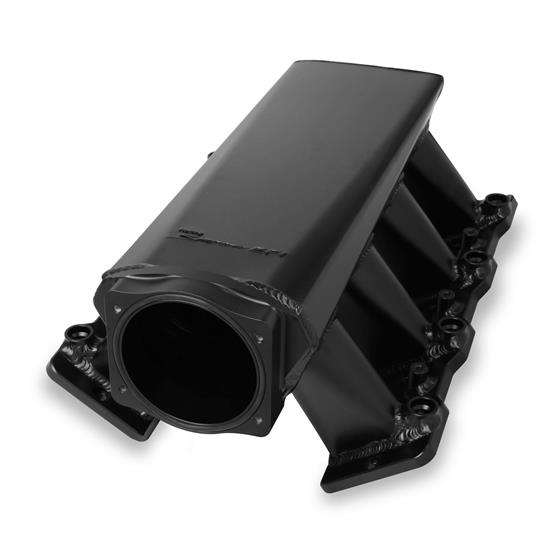

    SNIPER EFI SHEET METAL FABRICATED INTAKE MANIFOLD

    Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI Logo- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

    Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

    Features:

  • Black Finish creates stealthy under-hood styling
  • 3mm (1/8" ) thick T6061 sheet aluminum construction for maximum durability
  • 92mm throttle bore opening for increased air flow
  • 100% TIG welded for strength and durability
  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Provision for MAP sensor located on rear of plenum
  • Product includes all gaskets and hardware for a hassle-free installation
  • Charts

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Holley Sniper 820032-1 Specifications

    KEY SPECS
    MFG. Part #820032-1
    BrandHolley Sniper
    Intake Manifold TypeHi-Ram
    RPM Range2,200-6,800
    Material TypeAluminum
    GENERAL
    Fuel System TypeEFI
    Injection StyleMulti-port
    FinishAnodized
    ColorBlack
    EGRNo
    Throttle Body Bore Size92mm
    Intake Section IncludedComplete
    Plenum MaterialAluminum
    Plenum FinishBlack
    Base FinishAluminum
    Base MaterialBlack
    Throttle Body IncludedNo
    Injectors IncludedNo
    Aftermarket Fuel Rail RequiredYes
    Fuel Rails IncludedYes
    Overall Height8.267"
    Runners IncludedYes
    Runners RemovableNo
    Supplemental Bosses Cast-InNo
    Supplemental Bosses MachinedNo
    Emission Code4
    Sold in QuantityEach
    GTIN Code090127044933
