Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS

Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS

Universal Fit, Powder Coated, Black, 100 degree Angle

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
X
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Holley EFI 300-253BK Billet 4500 Throttle Body Intake Elbow, LS
Zoomed In Image
We estimate this item will ship on or before April 26th.
Part # 425300253BK
$520.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
300-253BK
Sold in Quantity:
Each
Finish:
Powder Coated
Color:
Black
Angle:
100 degree

Info

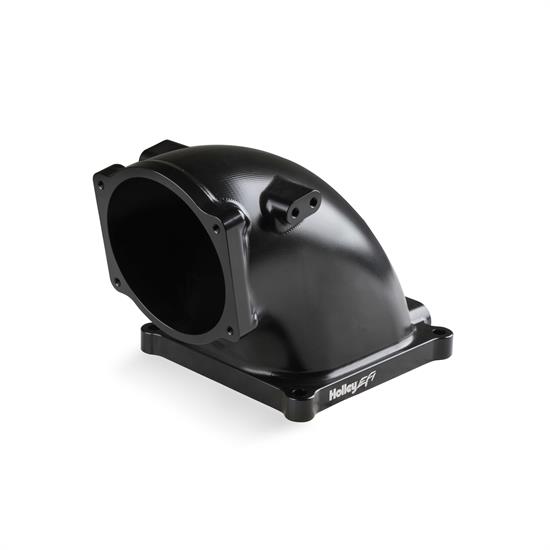

These machined billet aluminum EFI intake elbows allow the use of GM LS throttle bodies on any intake manifold w/ the 4500 mounting flange. Our design incorporates an optimized transition from the throttle body to the intake plenum for maximum airflow and distribution. Dual throttle cable mounting bracket bosses are included while the 4500 flange pattern allows the elbow & throttle body to be mounted forward, sideways, or rearward. The throttle bracket is included.

Features (4) vacuum ports, MAP sensor port, machined / port matched to 4500 gasket, and 100° throttle body angle for extra hood clearance. Includes billet MAP sensor port cover, gaskets & hardware. The port design spacing will also allow a transducer to be used if a MAP sensor is not needed. The intake flange has an o-ring groove for a positive flange seal and the o-ring is included as well.

Features:

  • Fits GM LS Throttle Bodies
  • 105mm Throttle Body Opening - 100° Mounting Angle
  • Fits Intakes w/ 4500 Flange- designed to use the included o-ring for sealing
  • The 4500 square flange pattern allows Forward, Sideways or Rearward Throttle Body Mounting
  • LS3 Style MAP Sensor Mounting
  • (4) vacuum ports, MAP sensor port,
  • (2) Throttle Linkage Mounting Bosses
  • Machined Billet finish
  • Overall Height 6.38”
  • Black Finish

425-300253BK Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 5 business days for Holley to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
