Holley 550-1213 Terminator X, 2013-2015 Ford Coyote Ti-VCT, EV6

$248 Off

#4255501213

Holley 550-1213 Terminator X, 2013-2015 Ford Coyote Ti-VCT, EV6

Name: Holley 550-1213 Terminator X, 2013-2015 Ford Coyote Ti-VCT, EV6
Brand: Holley
SKU: 4255501213
Price: 3149.95 USD
Availability: InStock

Write a Review

Ask a Question

$3,149.95

/kit

Factory Shipped

$3,397.95

Save $248.00

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Ford Coyote Ignition Type

See more details

Key Specs

MFG. Part #	550-1213
Ignition Type	Ford Coyote
Injector Connector	USCAR (EV6)
Tuner Style	Touchscreen Handheld
Throttle Style	Cable Driven

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Holley 550-1213 Details

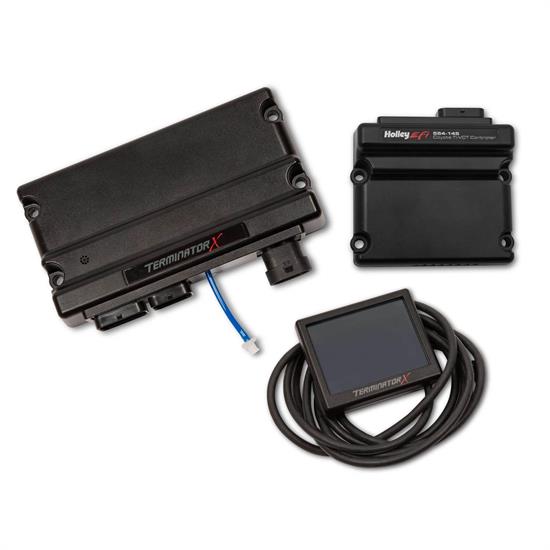

Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT.Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more.Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5" LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions.Included with Terminator X is Holley EFI's industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether you're building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that won't break the bank.

Features:

Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
Plug and Play compatible with Holley EFI accessories - Analog gauges, shift lights, modules, and both 6.86" and 12.3" Pro Dash
EV1 or EV6 injector harness included (depending on your injector configuration)
High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications - internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
Vacuum hose adapters included - (1/8", 1/4", and 3/16" sizes)
4 inputs - 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
Boost Control - boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
Nitrous Control - channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
Advanced Tables - ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
3.5" touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
Compact ECU (Engine Control Unit) - At only 7.45" x 4.1" x 1.66" the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6" x 4.1" x 1.66"). REMINDER: diagnostic LED's must face up!
FREE EFI Tuning software - For compete control of your Terminator X power plant

Charts

Quick Start for 550-1213 (PDF)

Harness Instructions for 550-1213 (PDF)

Controller Instructions for 550-1213 (PDF)

Guides & Documents

Engine Control Modules Installation Instructions (4255501213)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CARB warning

Holley 550-1213 Specifications

KEY SPECS
MFG. Part #	550-1213
Brand	Holley
Ignition Type	Ford Coyote
Injector Connector	USCAR (EV6)
Tuner Style	Touchscreen Handheld
Throttle Style	Cable Driven

GENERAL
MAP Sensor Included	Yes
Transmission Control	No
Oxygen Sensor Style	Bosch
GTIN Code	090127082379
Sold in Quantity	Kit

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2011-2014 Ford F-150

Ford Coyote Gen 1

2011-2014 Ford Mustang

Ford Coyote Gen 1

2015 Ford Mustang

Ford Coyote Gen 2

2018-2022 Ford Mustang

Ford Coyote Gen 4
