260, 289, 302, 351W, EFI Fuel System Type, Aluminum

    Key Specs

    MFG. Part #300-272
    BrandHolley

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

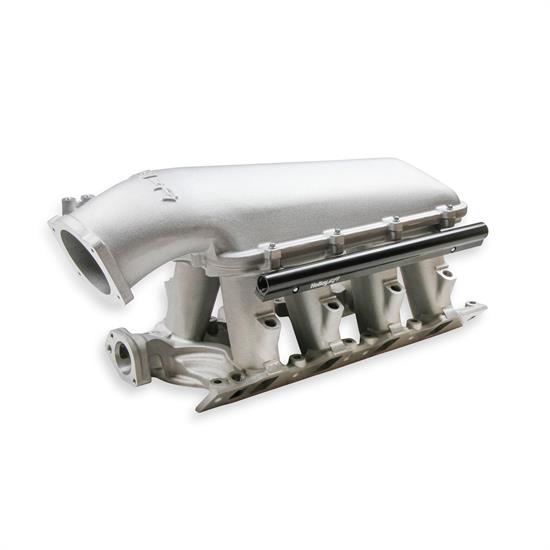

    8.2" SBF FORD HI-RAM EFI MANIFOLD

    8.2" SBF Ford Hi-Ram Intake Manifold with 95mm LS Throttle Body Flange Top.

    The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

    Manifold is designed for a 8.2" deck height.

    Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

    EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

    Cast aluminum construction.

    *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

    Features:

  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type 3/32 Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • The 8.2 SBF manifold is available to work with 95MM throttle bodies
  • Charts

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #300-272
    BrandHolley
    GENERAL
    Fuel System TypeEFI
    Injection StyleMulti-port
    Intake Manifold TypeHi-Ram
    RPM Range1,500-7,000
    Material TypeAluminum
    FinishSatin
    ColorNatural
    EGRNo
    Throttle Body Bore Size95mm
    Intake Section IncludedComplete
    Plenum MaterialAluminum
    Plenum FinishSatin
    Base FinishAluminum
    Base MaterialSatin
    Throttle Body IncludedNo
    Injectors IncludedNo
    Aftermarket Fuel Rail RequiredYes
    Fuel Rails IncludedYes
    Runners IncludedYes
    Runners RemovableNo
    Supplemental Bosses Cast-InNo
    Supplemental Bosses MachinedNo
    Emission Code3
    Sold in QuantityEach
    GTIN Code090127062630
