#425300116
$1,149.95
/each
Factory Shipped
$1,325.95
Save $176.00
Garage Sale alternatives: from $1049.99
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
| MFG. Part # | 300-116 |
| Brand | Holley |
| Intake Manifold Type | Hi-Ram |
| RPM Range | Idle-8,000 |
| Material Type | Aluminum |
Need help?
855.313.9176Quick and Easy Returns

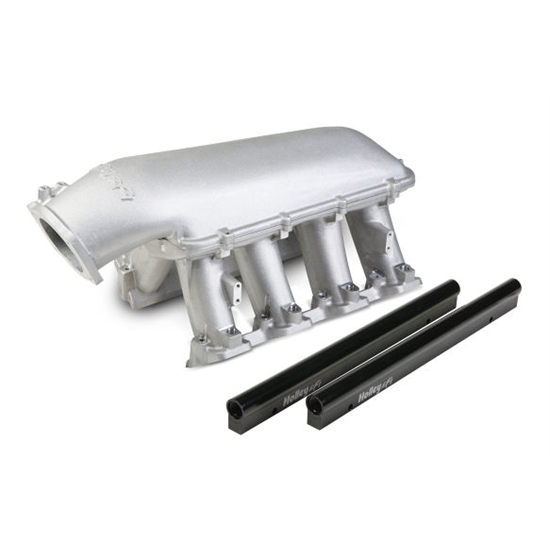

Return PolicyThe Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction. Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Charts
Guides & Documents
For race/ off road use only
| KEY SPECS | |
|---|---|
| MFG. Part # | 300-116 |
| Brand | Holley |
| Intake Manifold Type | Hi-Ram |
| RPM Range | Idle-8,000 |
| Material Type | Aluminum |
| GENERAL | |
| Fuel System Type | EFI |
| Finish | Natural |
| EGR | No |
| Cylinder Head Configuration | Rectangular Port |
| Throttle Body Bore Size | 92mm |
| Intake Section Included | Complete |
| Plenum Material | Aluminum |
| Plenum Finish | Natural |
| Throttle Body Included | No |
| Injectors Included | No |
| Aftermarket Fuel Rail Required | No |
| Fuel Rails Included | Yes |
| Overall Height | 12.32" |
| Runners Included | Yes |
| Runners Removable | No |
| Supplemental Bosses Cast-In | Yes |
| Supplemental Bosses Machined | No |
| Supplemental Boss Quantity | 8 |
| Emission Code | 4 |
| Sold in Quantity | Each |
| GTIN Code | 090127670729 |
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
Looks amazing on my 6.0!
5.0
9 months ago
Ls racer
Lovelock Nevada
Verified
Shipped out fast and included everything in the package. Instructions were easy to read and I installed it with ease. Thanks Holley and Speedway!
Would Recommend
Showing 1 of 1 reviews
Be the first to ask a question.
2009-2014 Cadillac CTS
GM LSA
2012 Cadillac Escalade
6.2 Chevy LS V8
2007-2012 Cadillac Escalade ESV
6.2 Chevy LS V8
2007-2012 Cadillac Escalade EXT
6.2 Chevy LS V8
2008 Chevy Tahoe
6.2 Chevy LS V8
2008-2009 Hummer H2
6.2 Chevy LS V8
