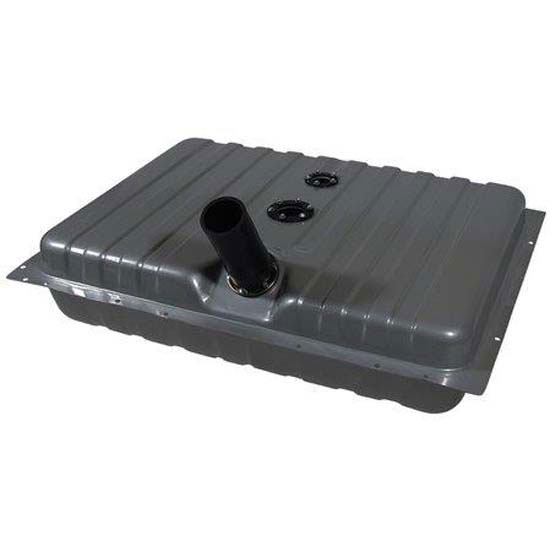

Holley 19-117 EFI Fuel Tank, 1969-70 Ford Mustang, Coated Steel

-7%

Holley 19-117 EFI Fuel Tank, 1969-70 Ford Mustang, Coated Steel
Holley

|

#42519117

Holley 19-117 EFI Fuel Tank, 1969-70 Ford Mustang, Coated Steel

$849.95

/each

Factory Shipped

$922.95

Save $73.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

69-70 Ford Mustang, EFI Conversion Fuel Tank Style

    See more details

    Key Specs

    MFG. Part #19-117
    Fuel Tank StyleEFI Conversion
    Fuel System TypeEFI
    Capacity22 gallons
    Material TypeSteel
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Holley 19-117 Details

    Holley and Sniper can help you to complete your EFI swap with their new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling, a fuel level sender, and the filler neck. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!

    • Tanks are coated galvanized steel then powder coated silver for total corrosion protection
    • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
    • Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
    • Fuel level sender included with the correct Ohm range for your factory gauges
    • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
    • EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
    • Fits and looks like an OE tank when installed
    • Fits 1969-70 Ford Mustang
    • Complete bolt in solution for your EFI conversion
    • Coated steel construction

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CARB warning

    Holley 19-117 Specifications

    KEY SPECS
    MFG. Part #19-117
    BrandHolley
    Fuel Tank StyleEFI Conversion
    Fuel System TypeEFI
    Capacity22 gallons
    Material TypeSteel
    FinishPowder Coated
    ColorSilver
    Sending Unit IncludedYes
    Fuel Pump IncludedYes
    Tank Straps IncludedNo
    Overall Length32.625"
    Overall Width24.5"
    Overall Height9.75"
    Hardware IncludedYes
    Fuel Capacity Range20.00-24.99 Gallons
    GENERAL
    Sold in QuantityKit
    GTIN Code090127740842
    Fuel TypeGasoline
    Filler Neck IncludedYes

    Questions & Answers

    1 Question • 1 Answer

    This tank should be an excellent replacement for the OEM 22 gallon unit in my 1970 Mustang Mach 1. Since this tank already has a high pressure EFI pump installed, is there a regulator available that can reduce fuel pressure enough to allow this assembly to be used for a conventional Holley 4 barrel carbureted Induction system. ? Due to the high total cost of an EFI system, I prefer to purchase it in stages and use this EFI tank with my carb while waiting on the eventual purchase of the EFI engine upgrade components.

    by AnalogDan

    • 8 years ago

    1 answer

    View Answer

    1 of 1 questions shown
